Parking Brake Control: Installation

  1. Install warning-light switch to hand lever.
    • Install and tighten screws to 3 Nm.

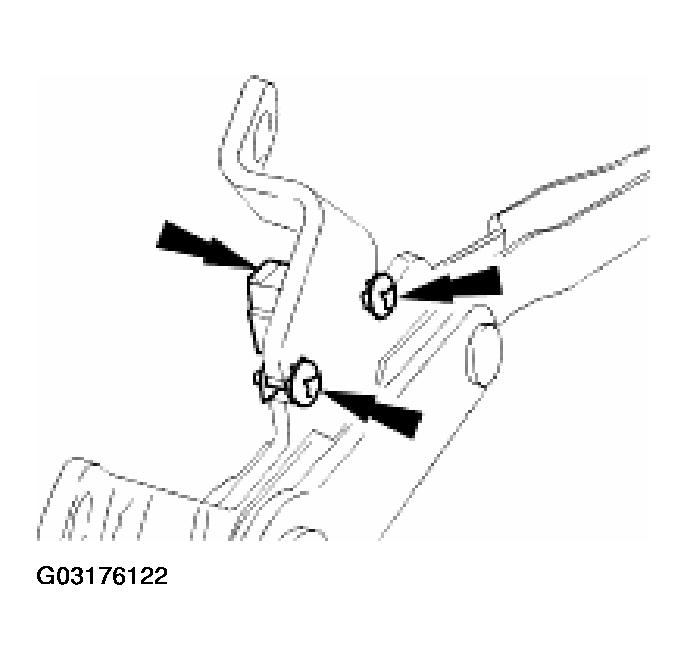

      Fig 1: Installing Warning-Light Switch To Hand Lever
      G03176122Courtesy of JAGUAR CARS, INC.
  2. Install gasket to handbrake lever.

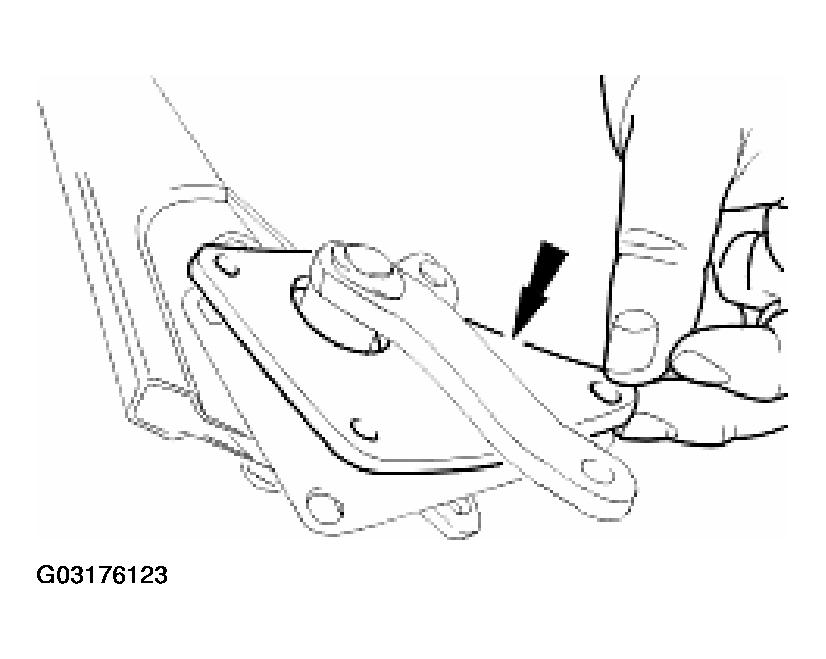

    Fig 2: Installing Gasket To Handbrake Lever
    G03176123Courtesy of JAGUAR CARS, INC.
  3. Install hand lever to vehicle.
    • Install and tighten bolts to 22-28 Nm.

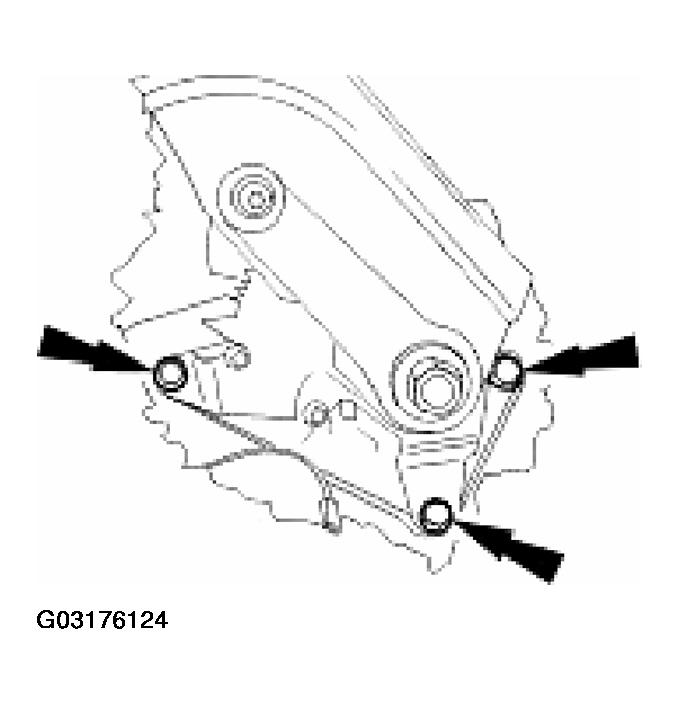

      Fig 3: Installing Hand Lever To Vehicle
      G03176124Courtesy of JAGUAR CARS, INC.
  4. Connect parking-brake, warning-light switch connector.

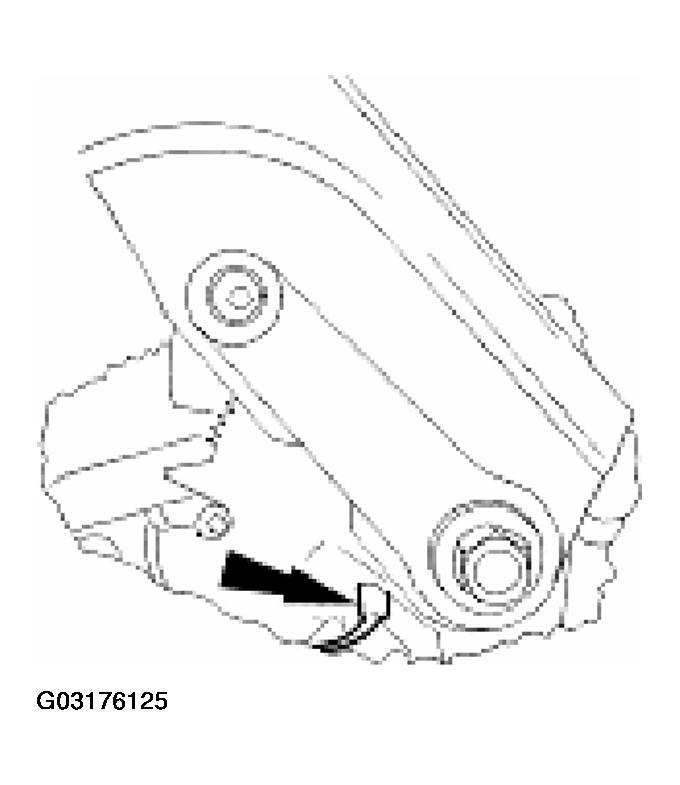

    Fig 4: Connecting Parking-Brake, Warning-Light Switch Connector
    G03176125Courtesy of JAGUAR CARS, INC.
  5. Reposition carpet.
  6. Install trim to hand lever. Refer toPARKING BRAKE CONTROL SHROUD  .
  7. Install driver seat. Refer to operation FRONT SEAT .
  8. Make sure parking brake is in the released position.
  9. Connect parking brake cable.
    • Align cable.
    • Install clevis pin.
    • Install clip.

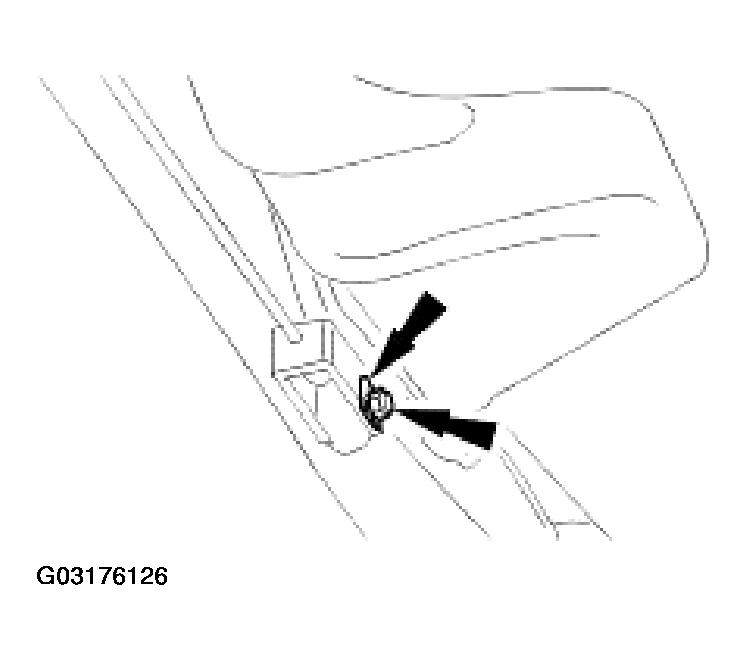

      Fig 5: Connecting Parking Brake Cable
      G03176126Courtesy of JAGUAR CARS, INC.
  10. Adjust parking brake. Refer to operation PARKING BRAKE CABLE ADJUSTMENT  .
