Parking Brake Cable Adjustment

  1. Raise rear of vehicle and support on stands. .
  2. Make sure gear selector is in neutral position.
  3. Adjust parking brake cable.
    • Rotate adjusting nut, until the parking brake can be applied by raising the parking brake lever 3 to 5 clicks.

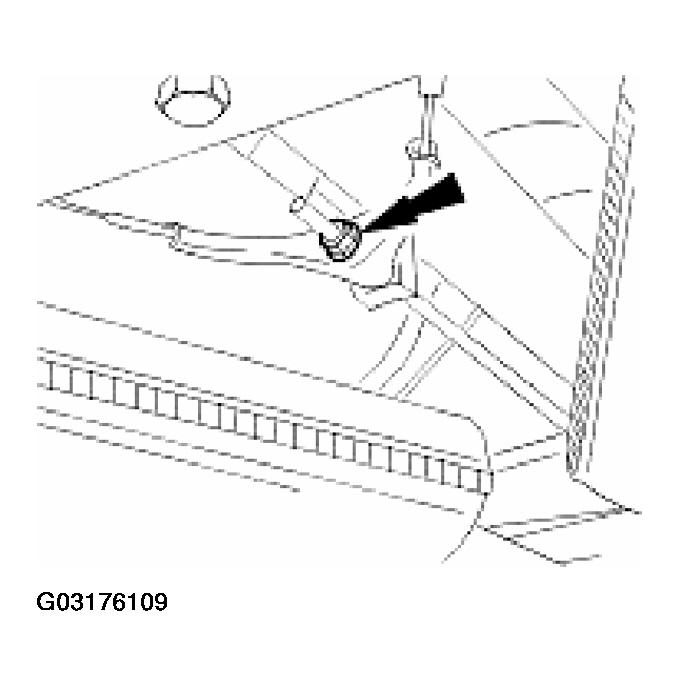

      Fig 1: Adjusting Parking Brake Cable
      G03176109Courtesy of JAGUAR CARS, INC.
    4. CAUTION: Make sure that the rear wheels rotate freely when the parking brake lever is released.
  4. Remove stands and lower vehicle.
