Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

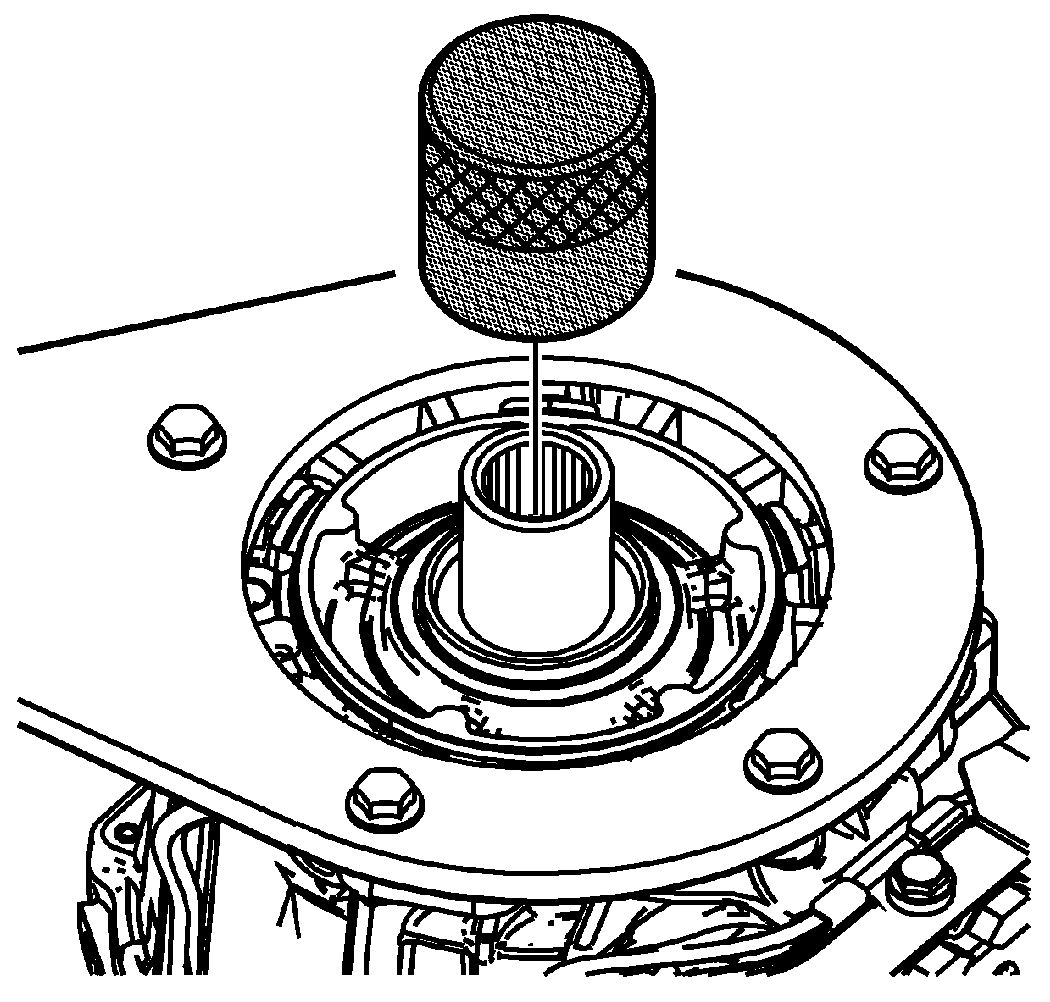

    Fig 1: Locating J 45934
    GM909417Courtesy of GENERAL MOTORS CORP.
  1. Using the J 45934  and a hammer, install the NEW input shaft seal into the transfer case. See Special Tools .

    The J 45934  will install the seal to the proper depth. See Special Tools .

    2. Fig 2: Mounting J 45759 Into J 3289-20
    GM908797Courtesy of GENERAL MOTORS CORP.
  2. Remove the J 45759  (2) from the transfer case. See Special Tools .
  3. Install the transfer case assembly. Refer to Transfer Case Assembly Replacement .
