Shoulder Belt Guide Adjuster Replacement - Front

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

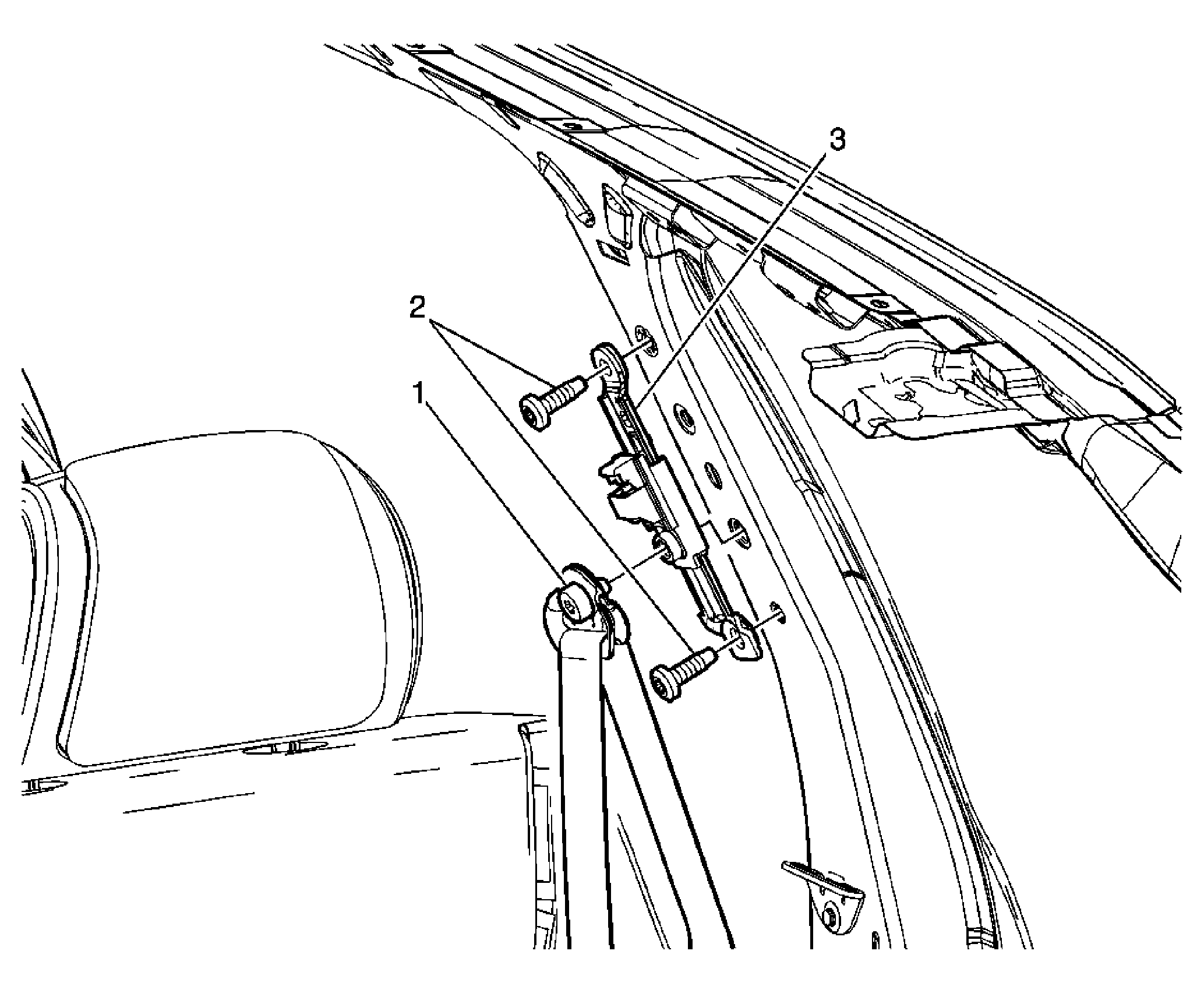

Fig 1: Removing/Installing Shoulder Belt Guide Adjuster - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the center pillar upper trim. Refer to Center Pillar Upper Garnish Molding Replacement .
1	Shoulder Belt Guide Bolt Tighten: 47 N.m (35 lb ft)
2	Shoulder Belt Guide Adjuster Bolt Tighten: 47 N.m (35 lb ft)
3	Shoulder Belt Guide Adjuster
