Seat Belt Retractor Replacement - Center Rear

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

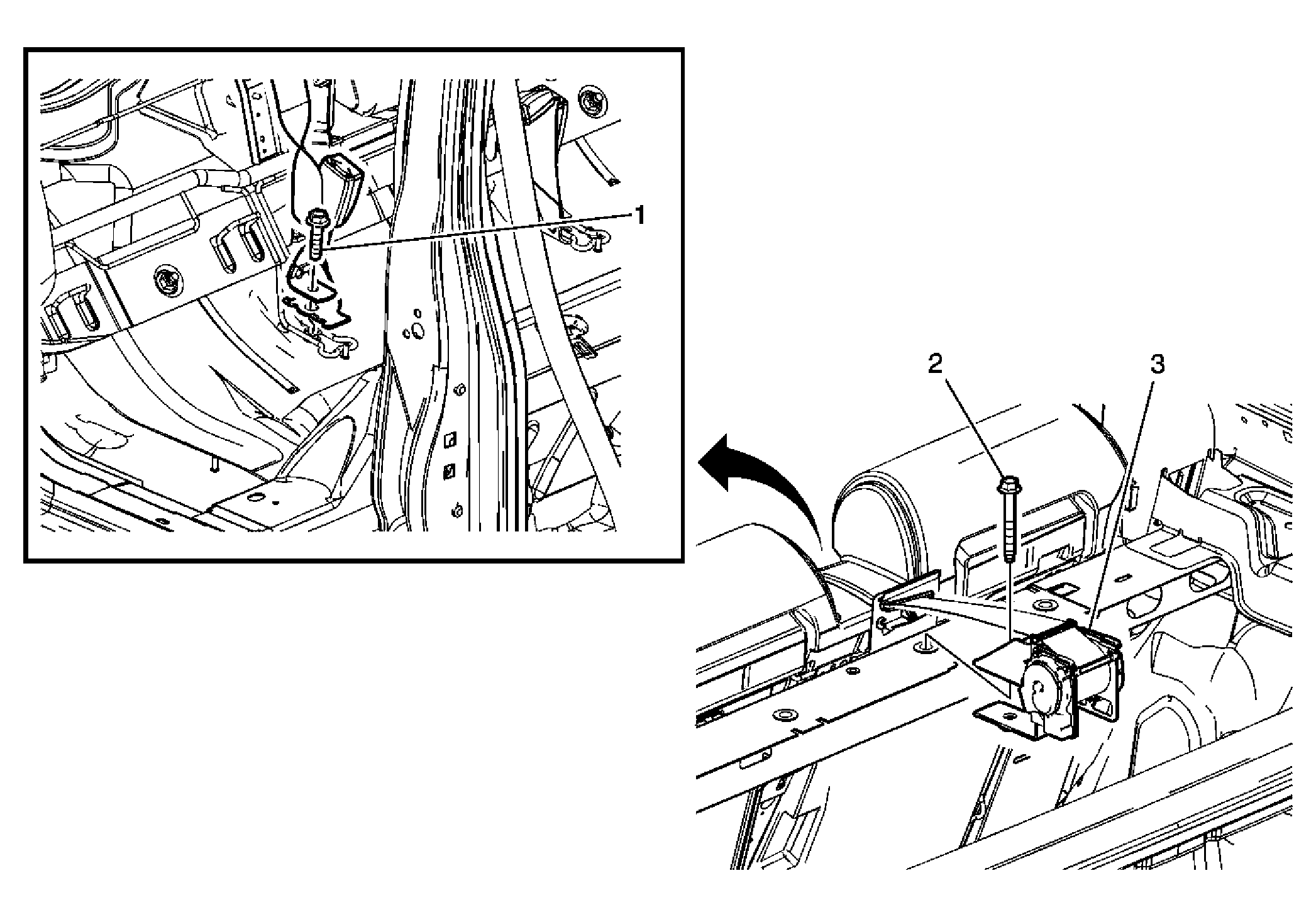

Fig 1: Seat Belt Retractor Replacement - Center Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the trim panel, rear window shelf. Refer to Rear Window Shelf Trim Panel Replacement . Remove the rear seat. Refer to Rear Seat Cushion Replacement and Seat Back Replacement - Rear .
1	Seat Shoulder Belt Anchor Plate Bolt Tighten: 36 N.m (27 lb ft)
2	Seat Belt Retractor Bolt Tighten: 30 N.m (22 lb ft)
3	Rear Center Seat Belt Retractor
