Rear Seat Belt Retractor Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Rear Seat Belt Retractor Replacement

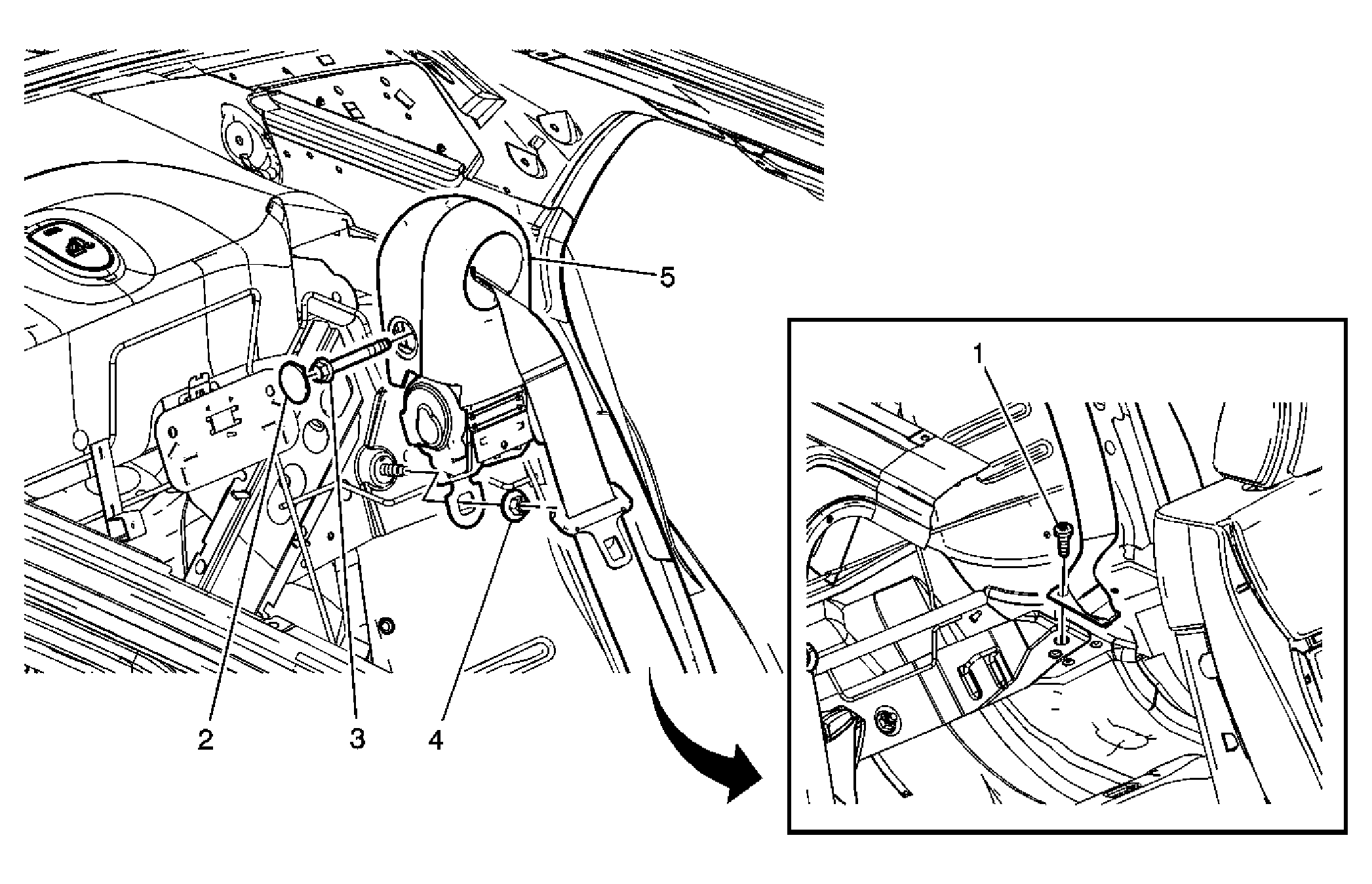

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat. Refer to Seat Back Replacement - Rear
and Rear Seat Cushion Replacement
. |
|
| 1 | Shoulder Belt Anchor Plate Bolt Tighten: 30 N.m (22 lb ft) |
| 2 | Rear Seat Retractor Bolt Hole Plug Tip: Use a small flat-bladed tool to remove the plug. Use caution to not scratch the finish of the plug or the housing. |
| 3 | Rear Seat Retractor Bolt Tighten: 36 N.m (27 lb ft) |
| 4 | Rear Seat Belt Retractor Nut Tighten: 36 N.m (27 lb ft) |
| 5 | Rear Seat Belt Retractor Assembly |
