Front Seat Belt Buckle Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

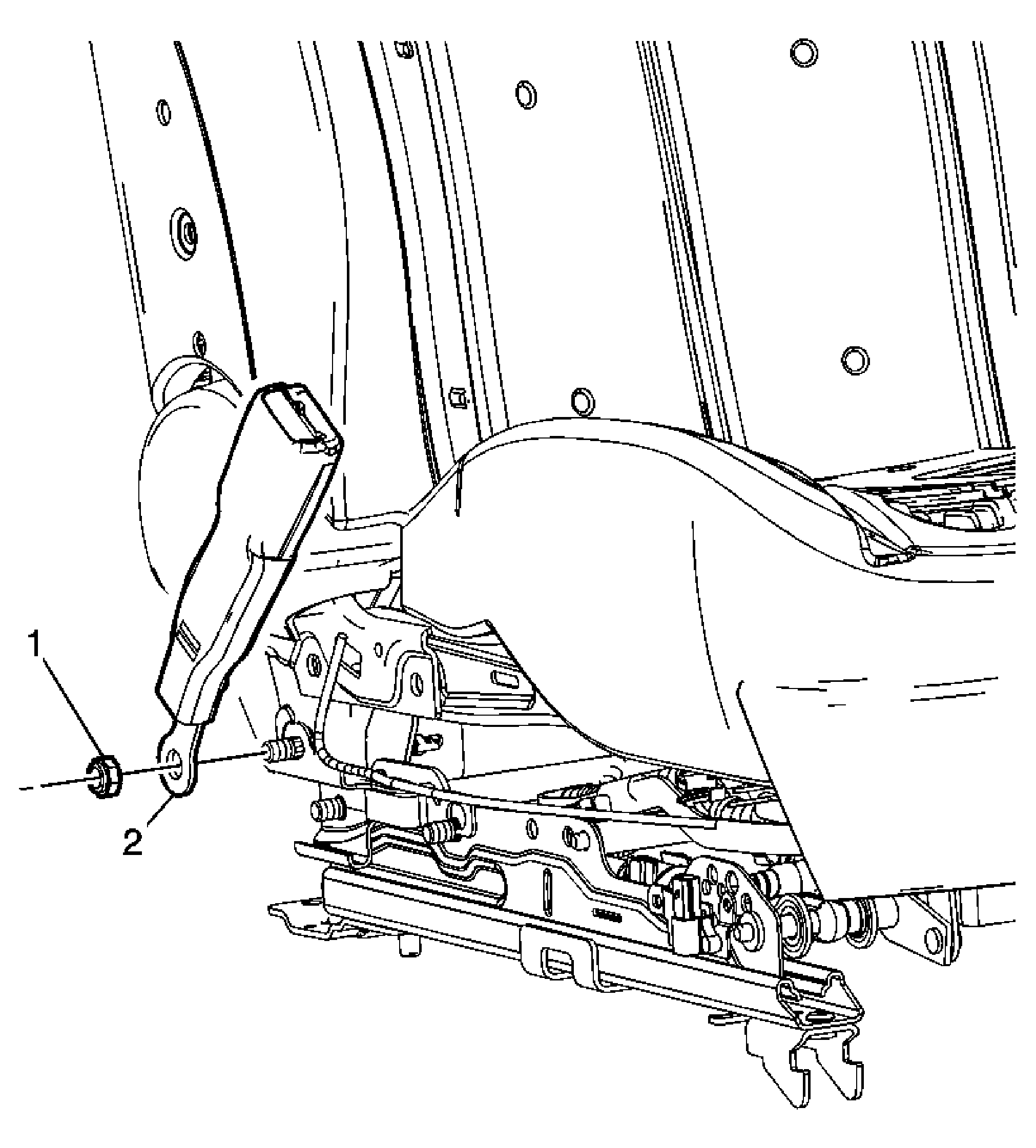

Fig 1: Removing/Installing Seat Belt Buckle - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front seat. Refer to Seat Replacement .
1	Seat Belt Buckle Bolt Tip: Disconnect electrical connectors. Tighten: 45 N.m (33 lb ft)
2	Seat Buckle Assembly Belt
