Child Seat Restraint System Belt Bracket Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

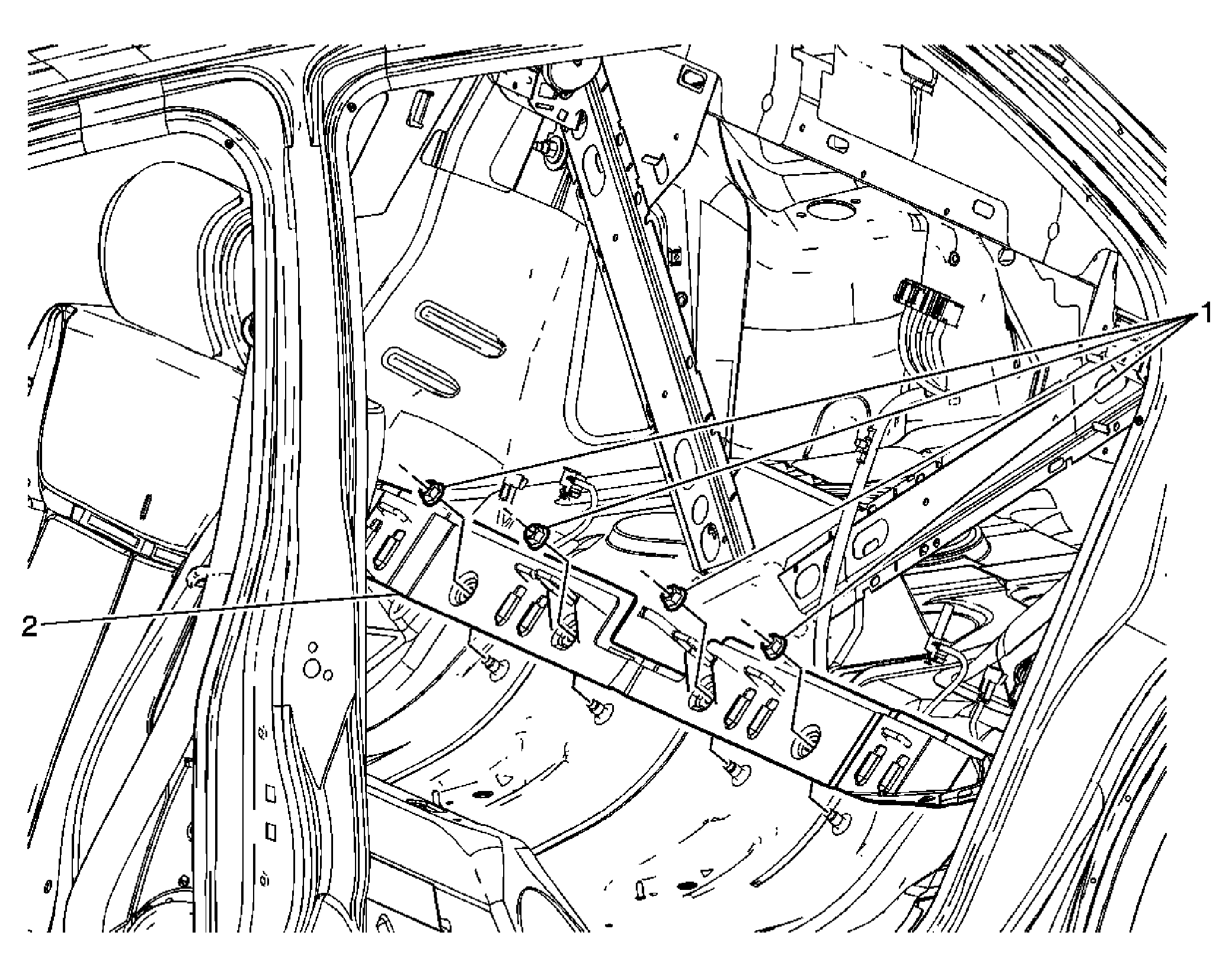

Fig 1: Bracket Replacement - Child Seat Belt Restraint System
GM1588748Courtesy of GENERAL MOTORS CORP.
Child Seat Restraint System Belt Bracket Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat. Refer to Seat Back Replacement - Rear and Rear Seat Cushion Replacement .
1 Child Restraint Tether Anchor Plate Nuts

Tighten:  45 N.m (33 lb ft)
2 Child Restraint Tether Anchor Plate
