Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

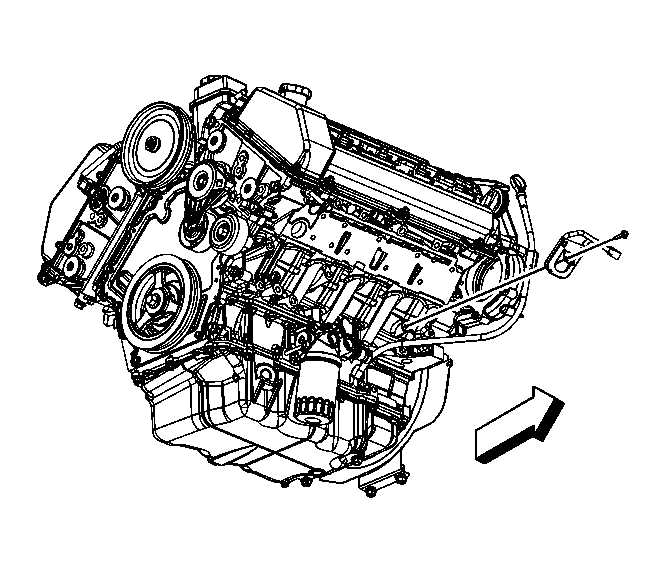

    Fig 1: Locating Coolant Heater & Bolt
    GM1667231Courtesy of GENERAL MOTORS CORP.
  1. Position the coolant heater to the engine block.
    2. NOTE: Refer to Fastener Notice .
  2. Install the coolant heater bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

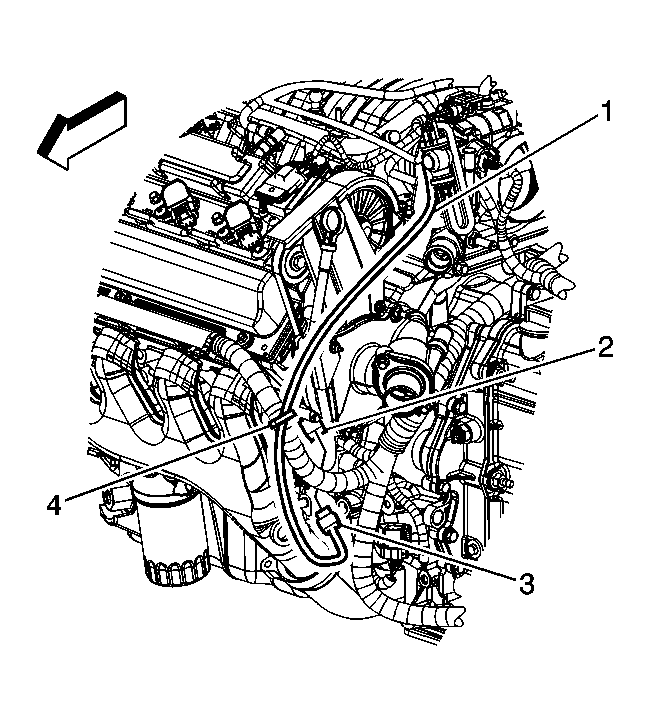

    3. Fig 2: Locating Coolant Heater Cord Electrical Connector
    GM1667235Courtesy of GENERAL MOTORS CORP.
  3. Connect the coolant heater cord electrical connector (3) to the coolant heater electrical connector (2).
  4. Remove the front air deflector. Refer to Front Air Deflector Replacement .
