Front Air Deflector Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

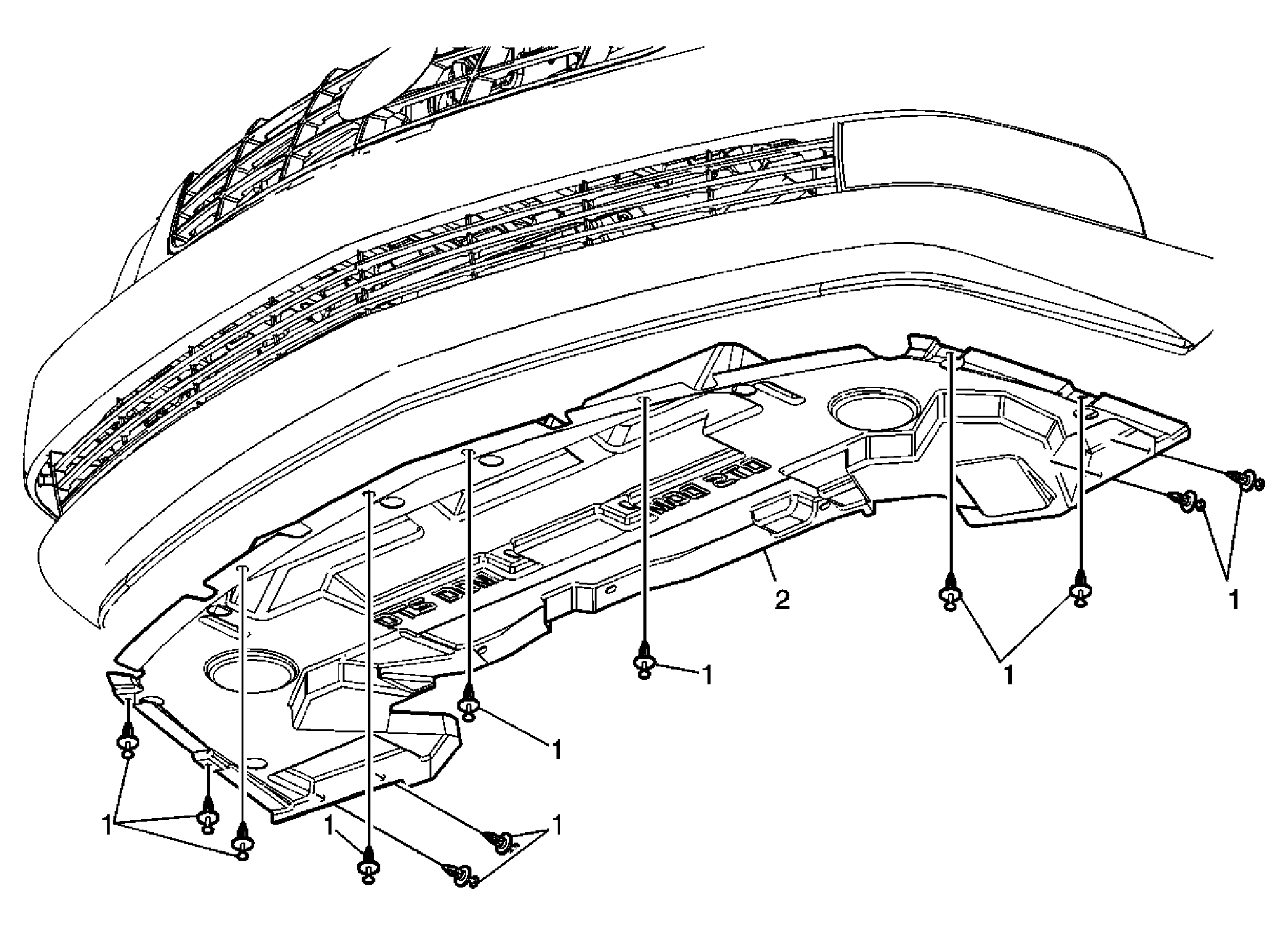

Fig 1: Front Air Deflector Replacement
GM1577443Courtesy of GENERAL MOTORS CORP.
Front Air Deflector Replacement

Callout Component Name
Preliminary Procedure:
Lift and support vehicle. Refer to Lifting and Jacking the Vehicle .
1 Retainers, Front Air Deflector (Qty: 17)
2 Deflector, Front Air
