Rear Window Inside Sunshade Switch Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

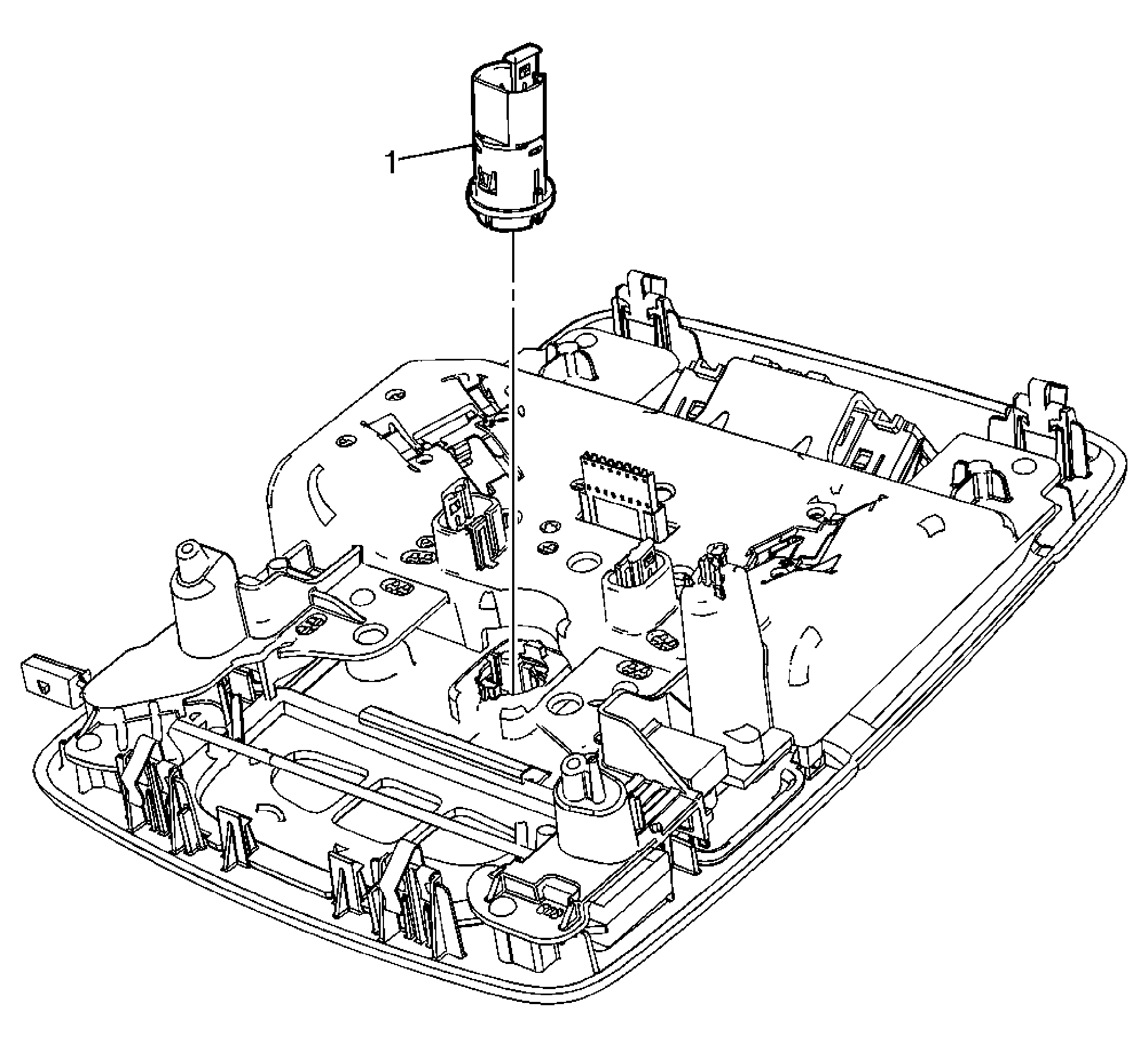

Fig 1: Rear Sunshade Switch Replacement
GM1651776Courtesy of GENERAL MOTORS CORP.
Rear Window Inside Sunshade Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the overhead console. Refer to Roof Console Replacement .
1 Rear Sunshade Switch
Tip:  Twist and Pullout switch.
