Front Door Switch Bezel Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

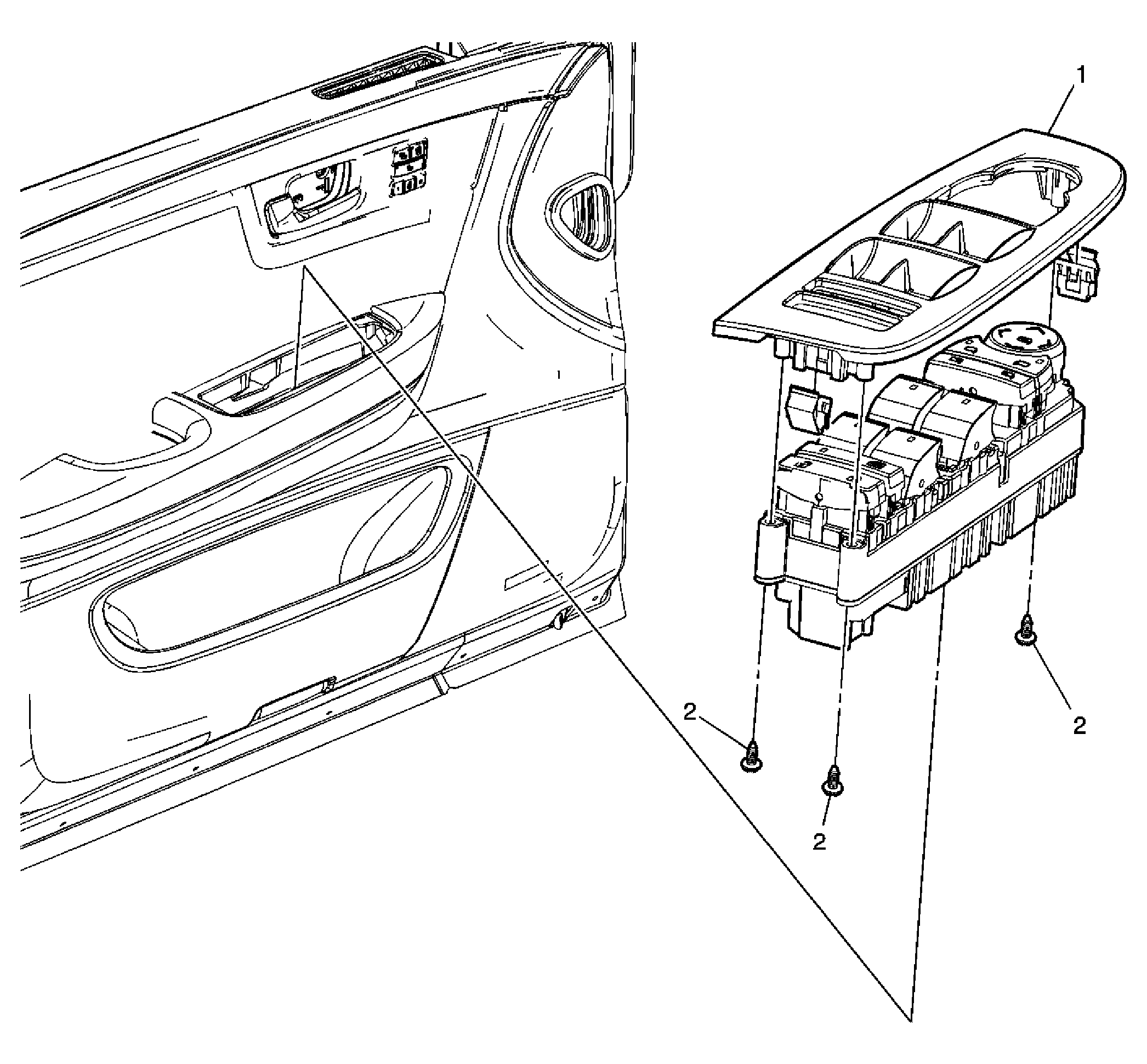

Fig 1: Front Door Switch Bezel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Plate, Side Door Armrest Switch Mount Tip: Use a flat-trim tool to pry up on the switch assembly. Disconnect the electrical connectors.
2	Screw, Side Door Armrest Switch Mount (Qty: 3) Tighten: 2 N.m (18 lb in)
