Armrest Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Armrest Replacement

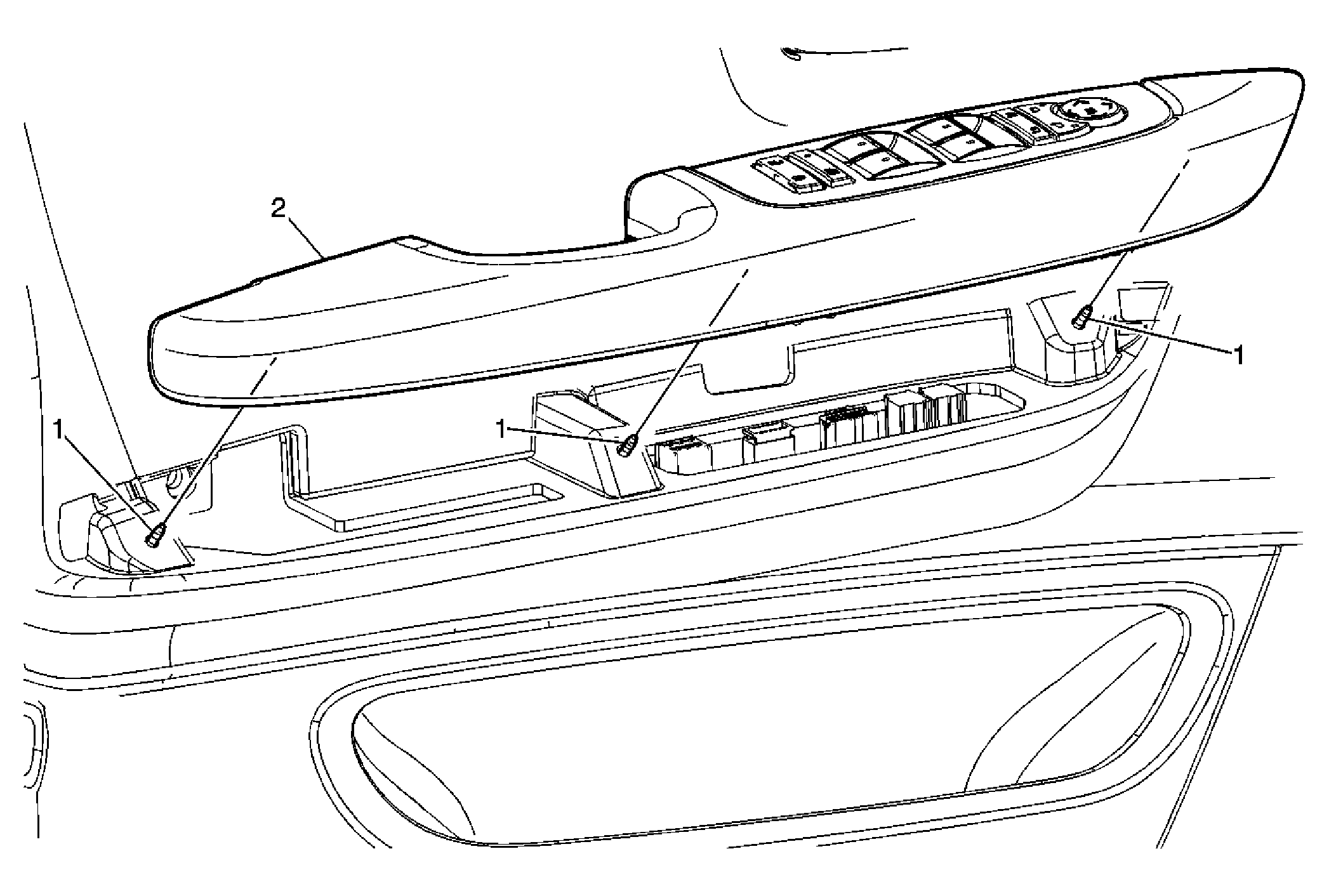

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the door panel. Refer to Front Side Door Trim Panel Replacement or Rear Side Door Trim Panel Replacement . |
|
| 1 | Screw, Side Door Armrest (Qty: 3) Tighten: 2 N.m (18 lb in) |
| 2 | Armrest Assembly Tip: Disconnect the electrical connectors. |
