Armrest Pull Cup Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

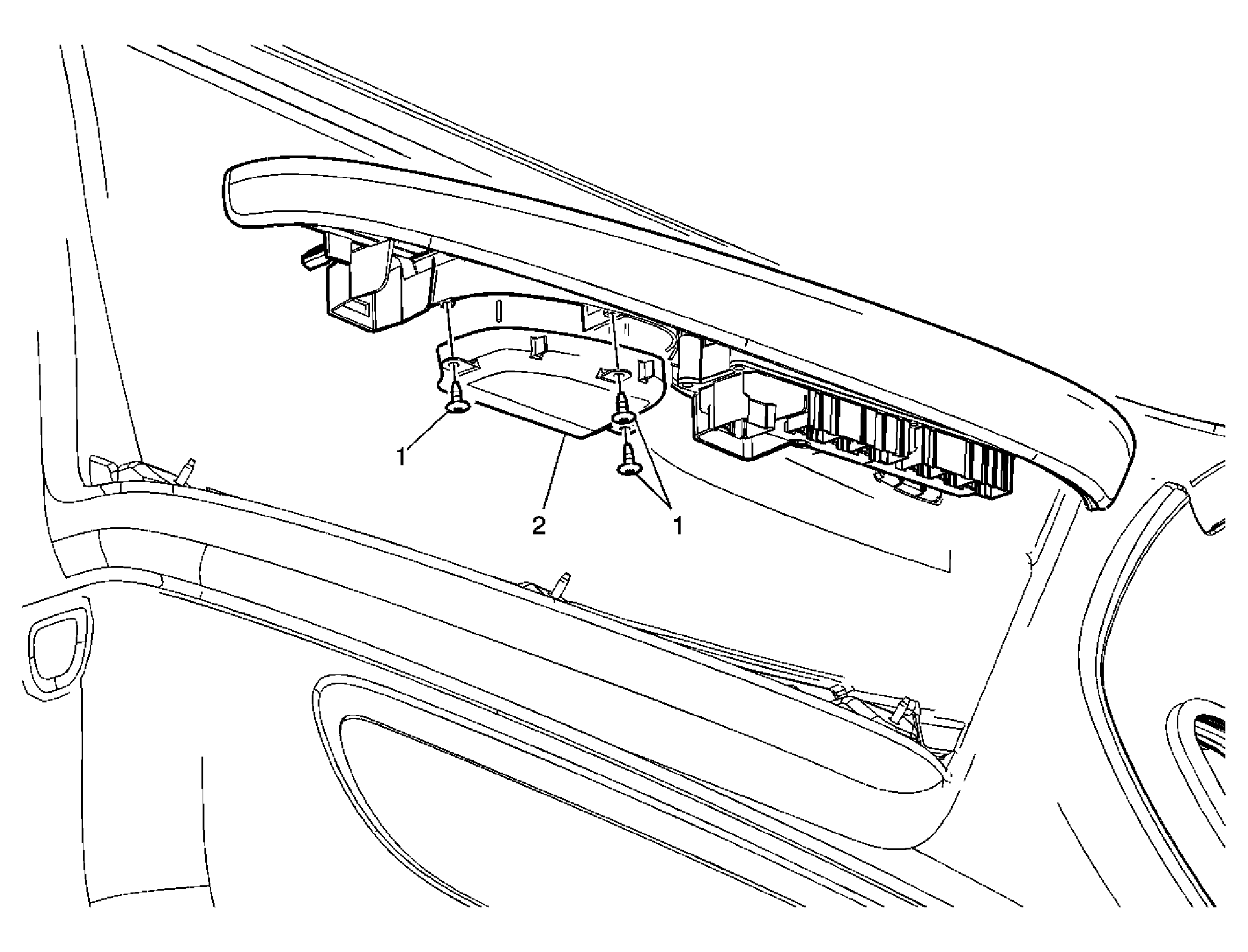

Fig 1: Armrest Pull Cup Replacement
GM1588533Courtesy of GENERAL MOTORS CORP.
Armrest Pull Cup Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the door panel. Refer to Front Side Door Trim Panel Replacement  or Rear Side Door Trim Panel Replacement .
1 Screw, Armrest Pull Cup (Qty: 3)

Tighten:  2 N.m (18 lb in)
2 Armrest Pull Cup
