Applique Trim Panel Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

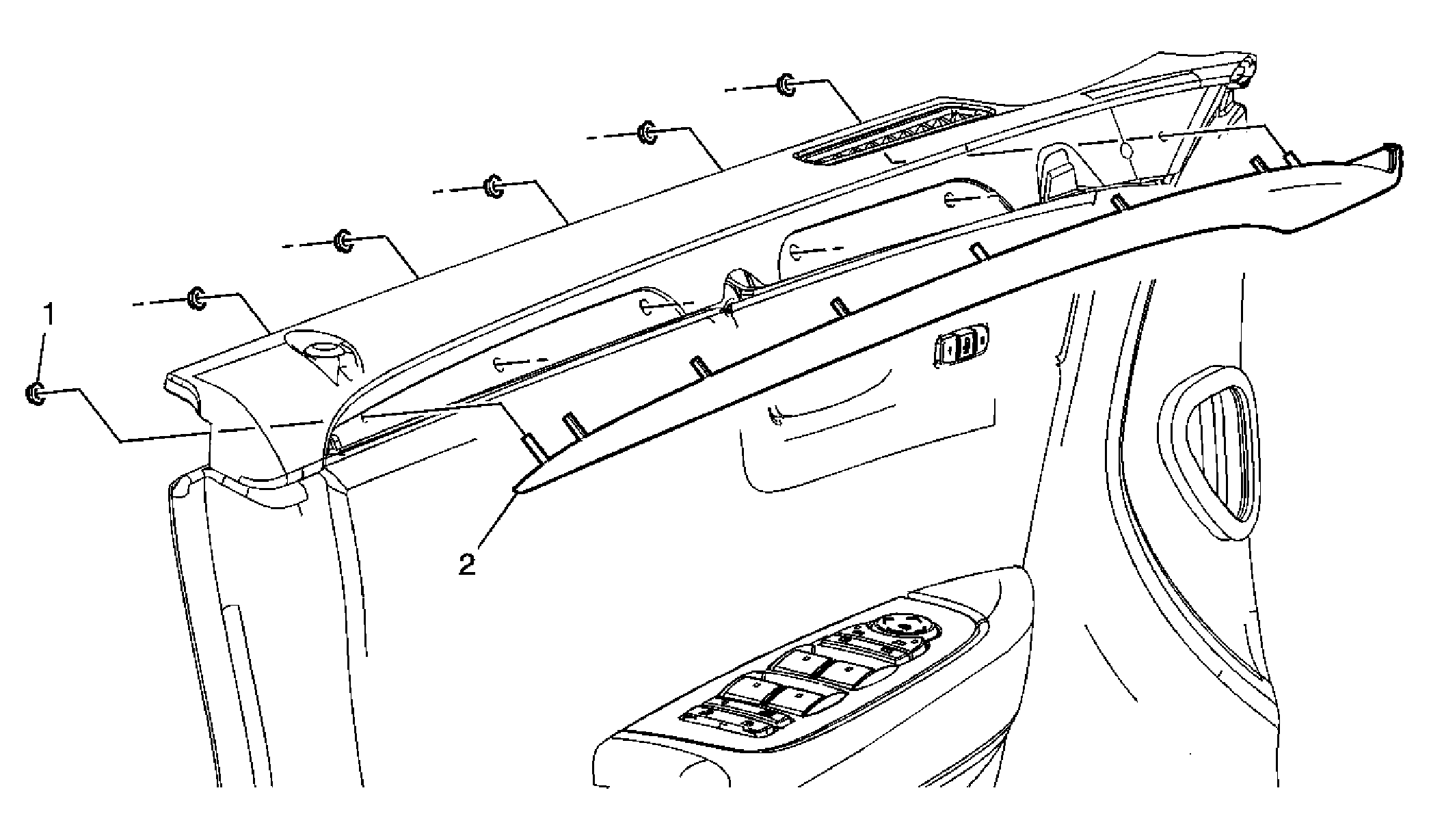

Fig 1: Trim Panel Replacement - Applique
GM1588532Courtesy of GENERAL MOTORS CORP.
Applique Trim Panel Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the door panel. Refer to Front Side Door Trim Panel Replacement  or Rear Side Door Trim Panel Replacement .
1 Nut, Applique Side Door Trim Panel (Qty: 6)

Tighten:  2 N.m (18 lb in)
2 Applique Assembly
