Instrument Panel Compartment Door Latch Release Handle Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

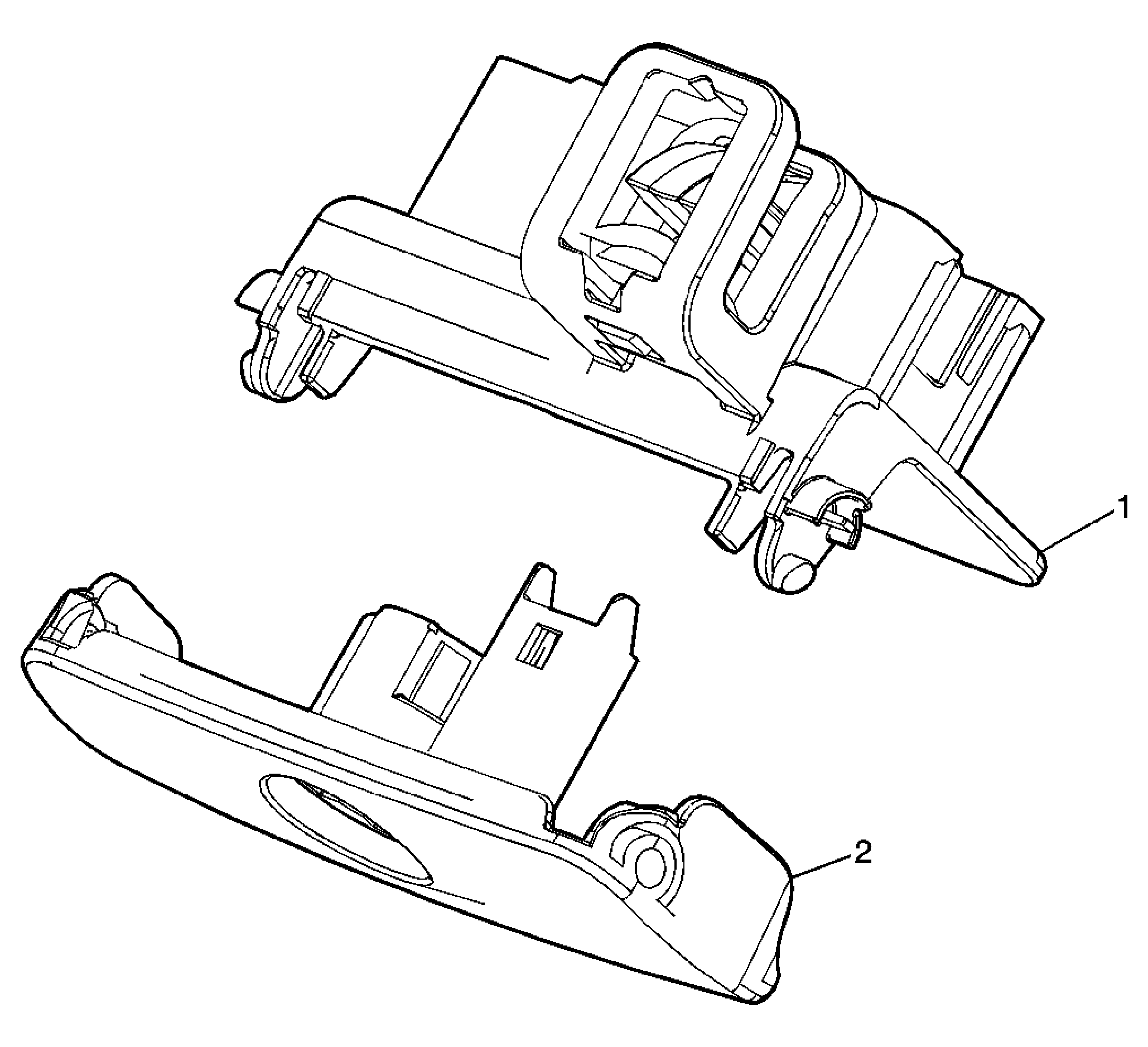

Fig 1: Handle - Instrument Panel (I/P) Compartment
GM1593684Courtesy of GENERAL MOTORS CORP.
Instrument Panel Compartment Door Latch Release Handle Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Latch Assembly, Instrument Panel Compartment.
Refer to Instrument Panel Compartment Door Latch Replacement .
2 Handle, Instrument Panel Compartment Latch
