Driver Seat and Passenger Seat Cushion Ventilation Heating and Cooling Blower Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

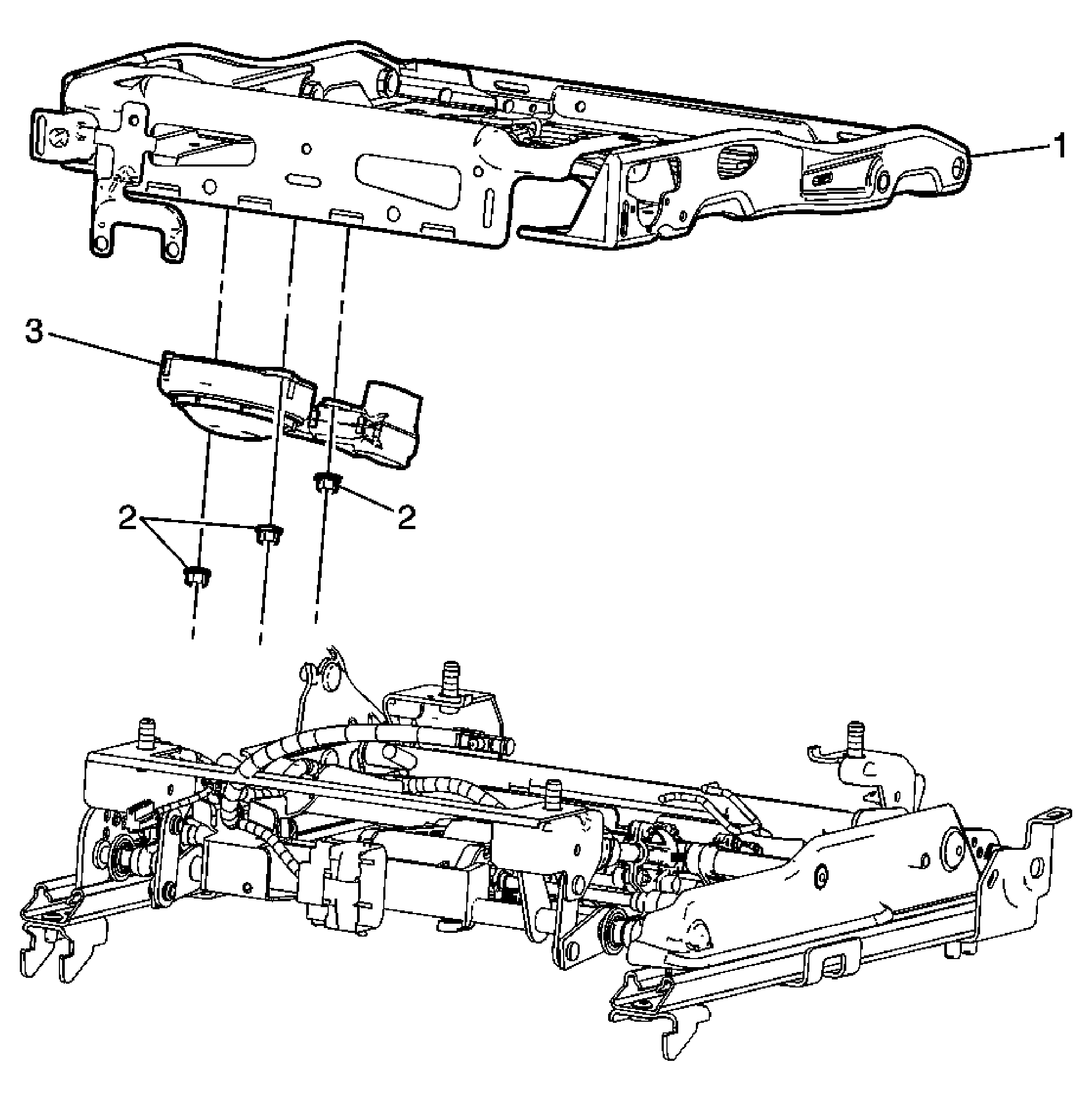

Fig 1: Blower Replacement - Ventilation Heat & Cool - Front Seat Cushion

Courtesy of GENERAL MOTORS CORP.

Seat Cushion Ventilation Heat and Cool Blower Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front seat. Refer to Seat Replacement . Remove the front seat cushion cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement .
1	Frame, Seat Cushion Refer to Front Seat Cushion Frame Replacement .
2	Nut, Front Seat Cushion Blower Assembly (Qty: 3) Tighten: 3 N.m (25 lb in)
3	Blower Assembly, Front Seat Cushion Tip: Disconnect the electrical connector.
