Rear Seat Lumbar Support Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

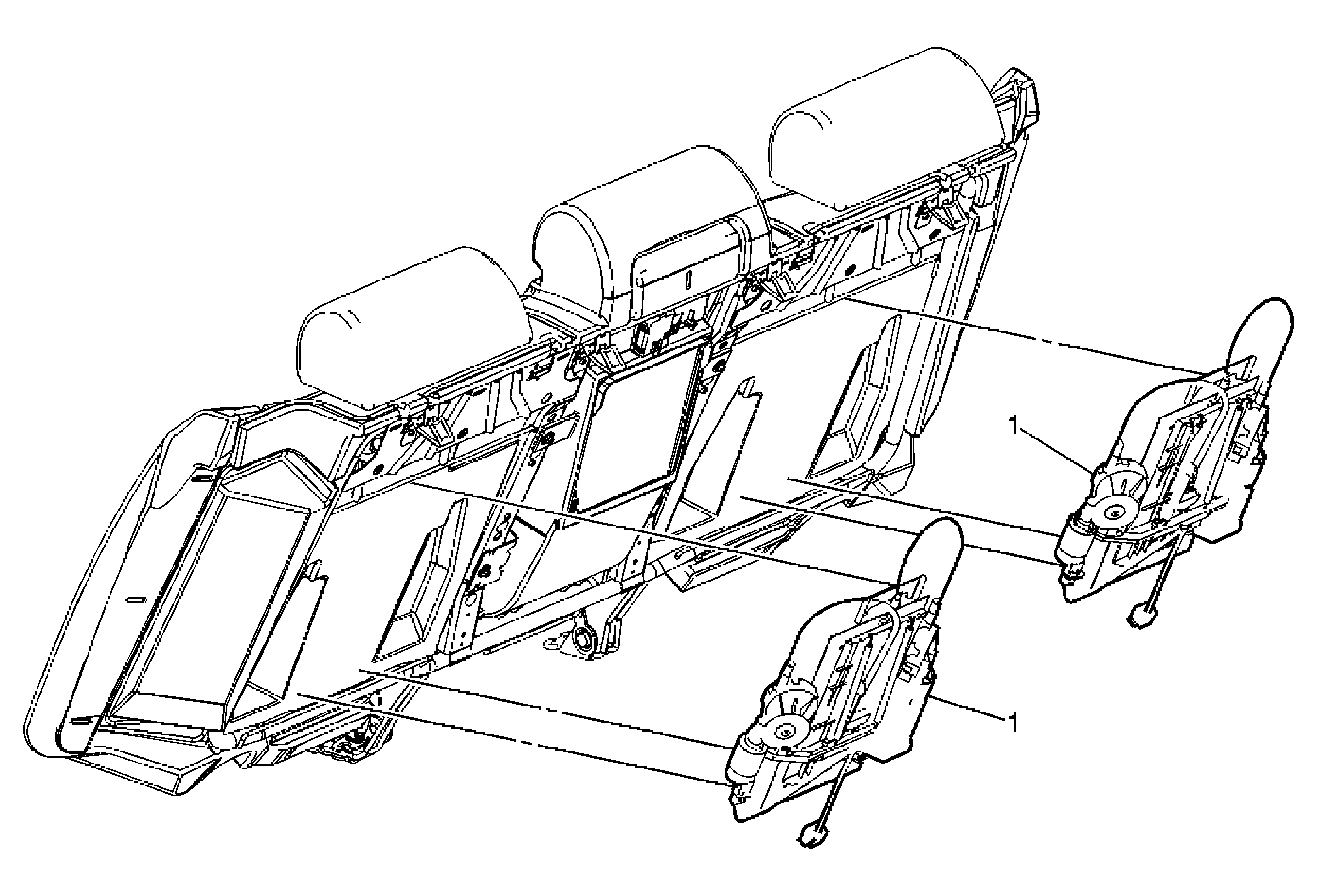

Fig 1: View of Rear Seat Lumbar Support

Courtesy of GENERAL MOTORS CORP.

Lumbar Replacement - Rear Seat

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Remove the rear seat back cushion. Refer to Seat Back Replacement - Rear .
1	Lumbar Assembly, Rear Seat (Qty: 2) Tip: Disconnect the electrical connectors. Detach and remove the lumbar assemblies through the rear of the seat back.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
Remove the rear seat back cushion. Refer to Seat Back Replacement - Rear .

Lumbar Assembly, Rear Seat (Qty: 2)
Tip:

Disconnect the electrical connectors.
Detach and remove the lumbar assemblies through the rear of the seat back.
