Rear Seat Head Restraint Guide Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

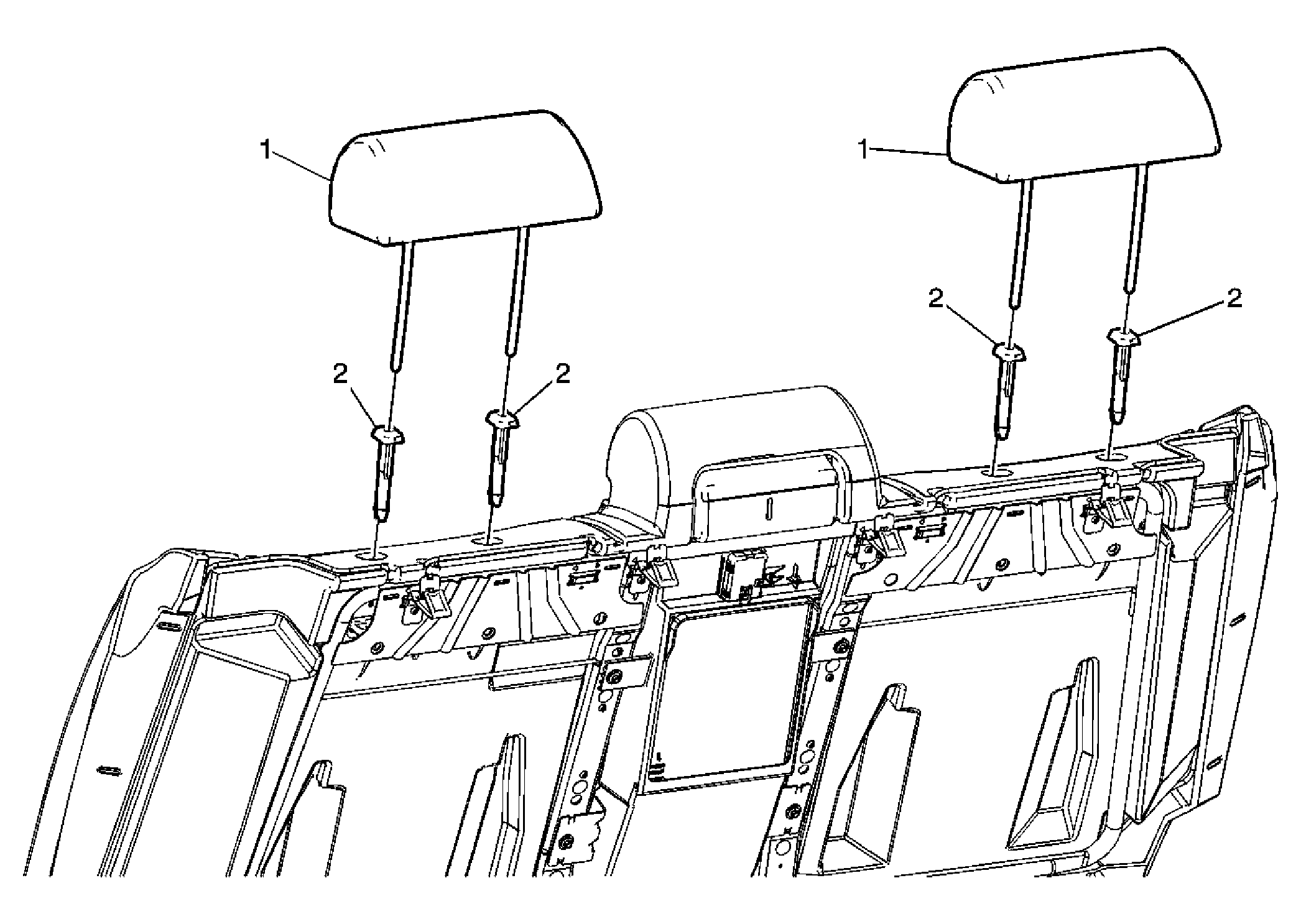

Fig 1: Seat Head Restraint Guide Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Remove the rear seat back cushion. Refer to Seat Back Replacement - Rear .
1	Head Restraint, Rear Seat (Qty: 2) Refer to Rear Seat Head Restraint Replacement .
2	Guide, Rear Seat Head Restraint (Qty: 4) Tip: Reach up under the seat back cover and pinch the base of the head restraint guide together and push upward to remove the guide.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
Remove the rear seat back cushion. Refer to Seat Back Replacement - Rear .

Head Restraint, Rear Seat (Qty: 2)
Refer to Rear Seat Head Restraint Replacement .

Guide, Rear Seat Head Restraint (Qty: 4)
Tip: Reach up under the seat back cover and pinch the base of the head restraint guide together and push upward to remove the guide.
