Front Seat Armrest Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

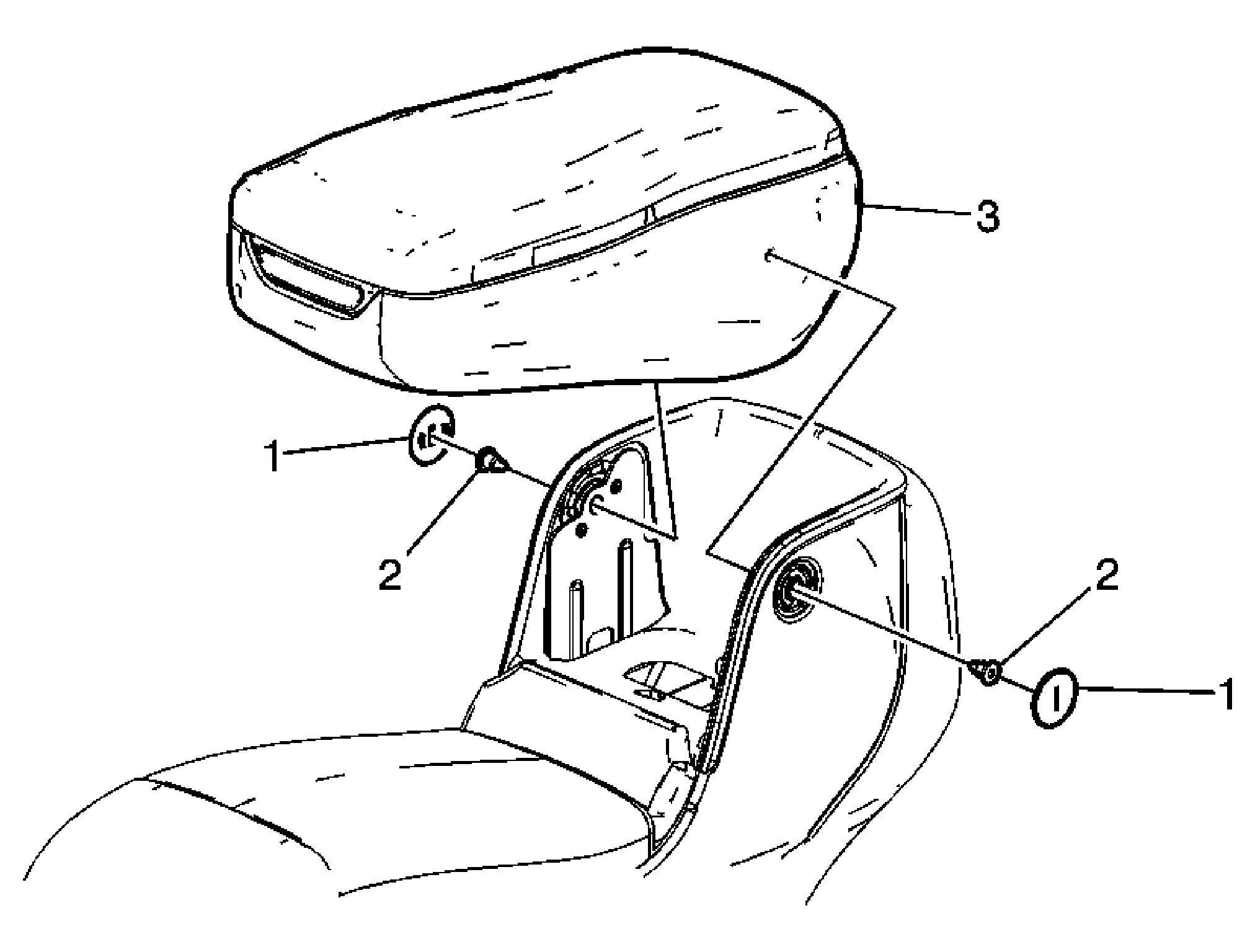

Fig 1: Front Seat Armrest Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front seats. Refer to Seat Replacement .
1	Cover, Front Center Seat Armrest Bolt (Qty: 2)
2	Screw, Front Center Seat Armrest (Qty: 2) Tighten: 3 N.m (25 lb in)
3	Armrest Assembly, Front Center Seat
