Wiper Arm Blade Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

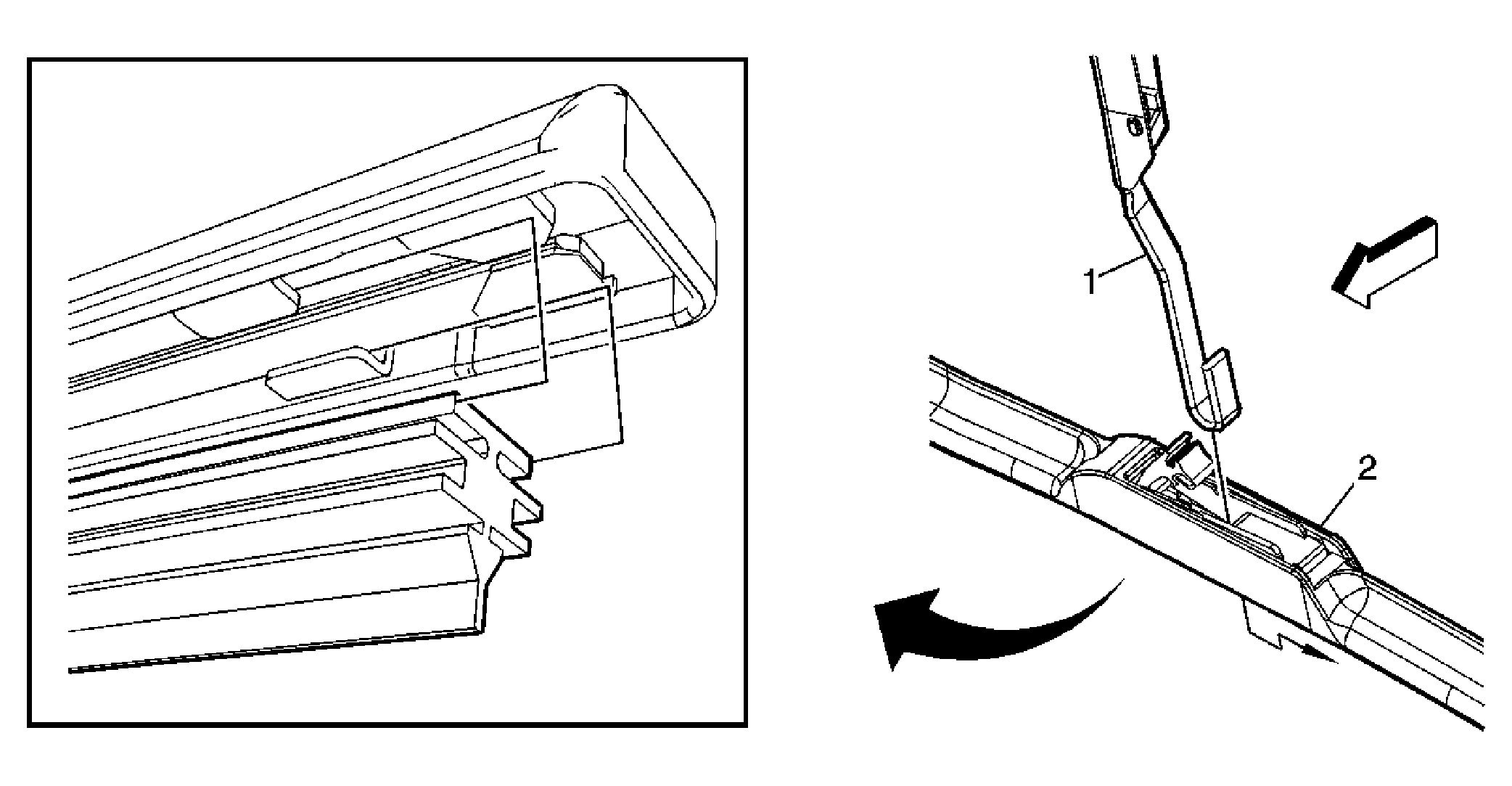

Fig 1: Wiper Arm Blade Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Open the hood. Raise the wiper blade off the glass.
1	Arm Assembly, Windshield Wiper
2	Tab, Windshield Wiper Arm Blade Tip: Lift the locking tab away from the wiper arm hook in order to disengage the wiper arm from the wiper blade.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Open the hood.
Raise the wiper blade off the glass.

Arm Assembly, Windshield Wiper

Tab, Windshield Wiper Arm Blade
Tip: Lift the locking tab away from the wiper arm hook in order to disengage the wiper arm from the wiper blade.
