Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Be sure to follow the service procedure when removing the air inlet grille panel. Failure to follow service procedure may cause damage to the air inlet grille panel or the windshield.
  1. Open the hood.
  2. Remove the windshield wiper arms. Refer to Wiper Arm Replacement .
  3. Remove the hood seal, rear. Refer to Hood Rear Seal Replacement .

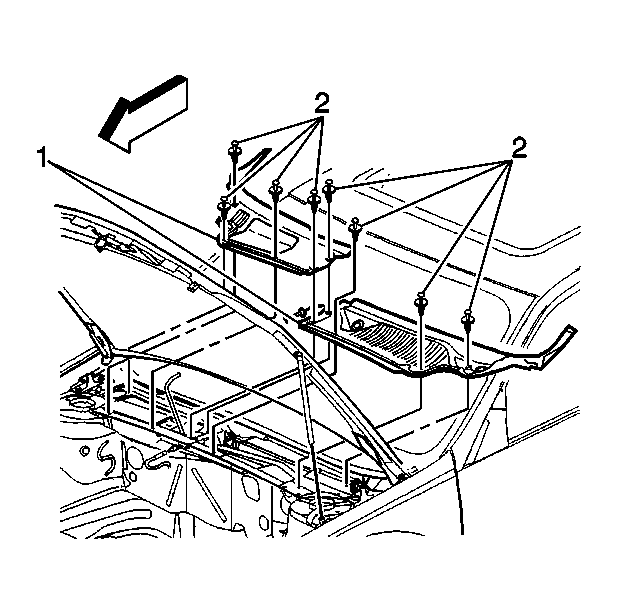

    4. Fig 1: View Of Air Inlet Grill Panels & Push In Retainers
    GM457411Courtesy of GENERAL MOTORS CORP.
  4. Remove the push in retainers (2) securing the air inlet grill panels (1) to the vehicle.
  5. Disconnect the washer hose connector.
  6. Push the washer hose grommet into the plenum area.
  7. Remove the air inlet grille panel from the vehicle.
