Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Theft Deterrent Lock, Black Connector & Screw
    GM626493Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not remove the upper shroud from the closeout trim cover
    Do not remove the closeout trim cover from the I/P.
  1. Snap the ignition lock cylinder solenoid (1) onto the ignition lock cylinder case assembly.
  2. Install the tapping screw (3) into the mounting hole of the ignition lock cylinder solenoid (1) and the ignition switch assembly.
  3. Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .
  4. Install the black connector into the ignition lock cylinder solenoid (1).

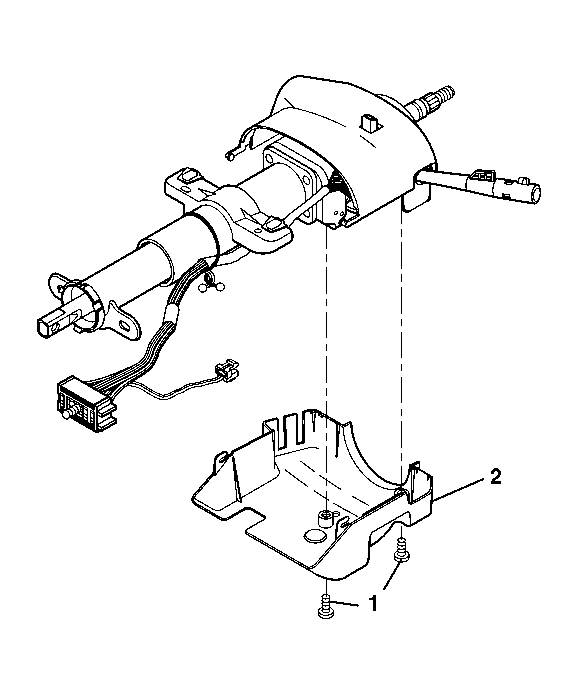

    5. Fig 2: Removing/Installing Lower Trim Cover
    GM1695122Courtesy of GENERAL MOTORS CORP.
  5. Install the lower trim cover (2) onto the steering column.
  6. Attach the closeout trim cover to the lower trim cover (2).
    7. NOTE: Refer to Fastener Notice .
  7. Install the 2 pan head tapping screws (1) to the lower trim cover (2).

    Tighten:  Tighten the screws to 3 N.m (27 lb in).

    8. CAUTION: Refer to SIR Inflator Module Coil Caution .
  8. Install the steering wheel onto the steering column. Refer to Steering Wheel Replacement .
  9. Install the tilt lever. Refer to Tilt Lever Replacement .
  10. Enable the SIR system. Refer to SIR Disabling and Enabling .
