Ignition Lock Cylinder Case Bracket Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

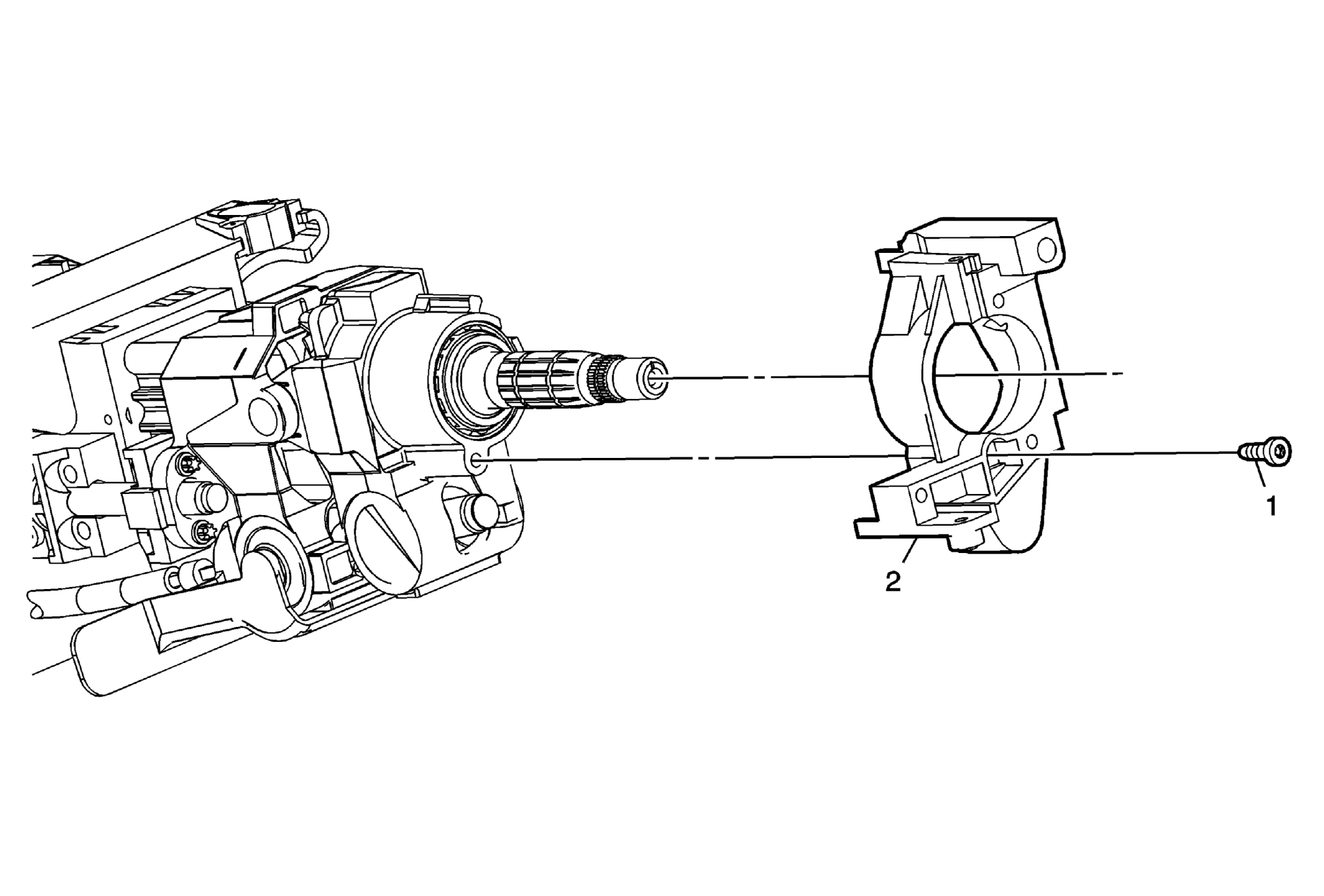

Fig 1: Ignition Lock Cylinder Case Bracket Replacement

Courtesy of GENERAL MOTORS CORP.

Callouts	Component Name
Preliminary Procedure Remove the turn signal multifunction switch. Refer to TURN SIGNAL MULTIFUNCTION SWITCH REPLACEMENT Remove the ignition lock cylinder case. Refer to Ignition Lock Cylinder Case Replacement
1	Ignition Lock Cylinder Case Bracket Bolt NOTE: Refer to Fastener Notice in the Preface section. Tip The ignition lock cylinder case bracket bolt is not present on manual steering columns. Tighten 7 N.m (62 lb in)
2	Ignition Lock Cylinder Case Bracket

Callouts

Component Name

Preliminary Procedure

Remove the turn signal multifunction switch. Refer to TURN SIGNAL MULTIFUNCTION SWITCH REPLACEMENT
Remove the ignition lock cylinder case. Refer to Ignition Lock Cylinder Case Replacement

Ignition Lock Cylinder Case Bracket Bolt

NOTE: Refer to Fastener Notice in the Preface section.

Tip

The ignition lock cylinder case bracket bolt is not present on manual steering columns.

Tighten

7 N.m (62 lb in)

Ignition Lock Cylinder Case Bracket
