Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear suspension support assembly. Refer to Support Replacement - Rear (W/FE1, FE3) or Support Replacement - Rear (W/FE7) .

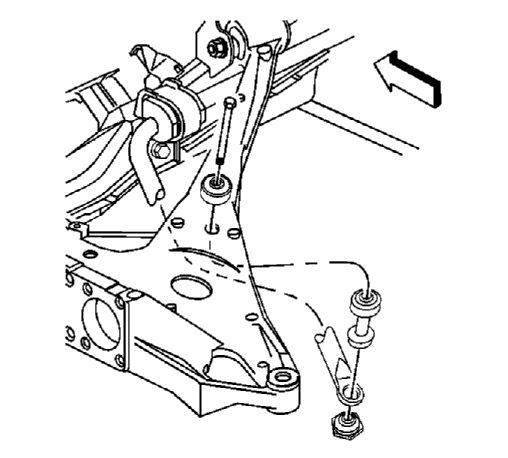

    2. Fig 1: View Of Stabilizer Shaft Link Insulators, Spacer, Nut & Bolt
    GM561499Courtesy of GENERAL MOTORS CORP.
  2. Remove the stabilizer shaft link bolt.
  3. Remove the stabilizer shaft insulators and spacer.
  4. Remove the hub and bearing, if necessary. Refer to Wheel Bearing/Hub Replacement - Rear (FE1, FE3)  or Wheel Bearing/Hub Replacement - Rear (FE7) .
    5. Fig 2: View of Lower Control Arm
    GM105029Courtesy of GENERAL MOTORS CORP.
  5. Remove the nuts and the bolts securing the control arm to the rear suspension support assembly.
  6. Remove the lower control arm.
