Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front cover. Refer to Engine Front Cover Replacement .

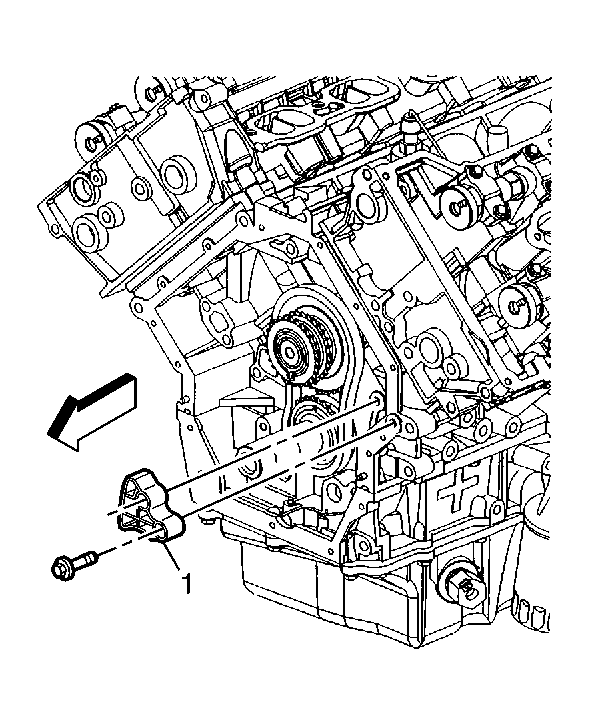

    2. Fig 1: Locating Primary Camshaft Drive Chain Guide & Bolts
    GM207533Courtesy of GENERAL MOTORS CORP.
  2. Remove the two bolts attaching the primary camshaft drive chain guide (1) to the engine block.
  3. Remove the primary camshaft drive chain guide (1).
  4. Clean and inspect the camshaft timing drive components. Refer to Camshaft Timing Drive Components Cleaning and Inspection in Engine Mechanical-4.6L Unit Repair.
