Outside Rearview Mirror Glass Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

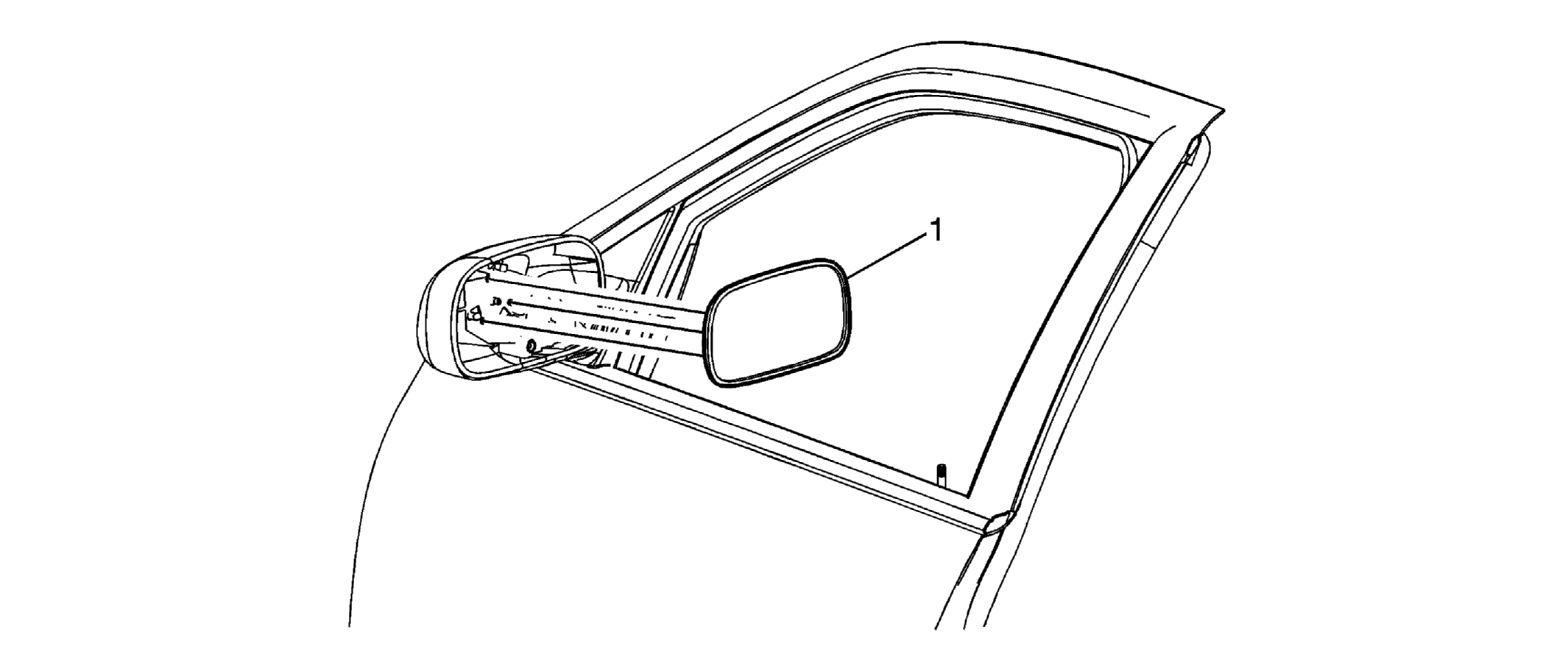

Fig 1: Mirror Face Replacement
GM1583303Courtesy of GENERAL MOTORS CORP.
Mirror Face Replacement

Callout Component Name
CAUTION: Refer to Glass and Sheet Metal Handling Caution .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Mirror Face, Outside Rearview
Tip:
  1. Release the mirror face backing from the mirror housing by pulling outward.
  2. Disconnect electrical connectors from mirror, if equipped.
