Rear Side Door Inside Handle Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

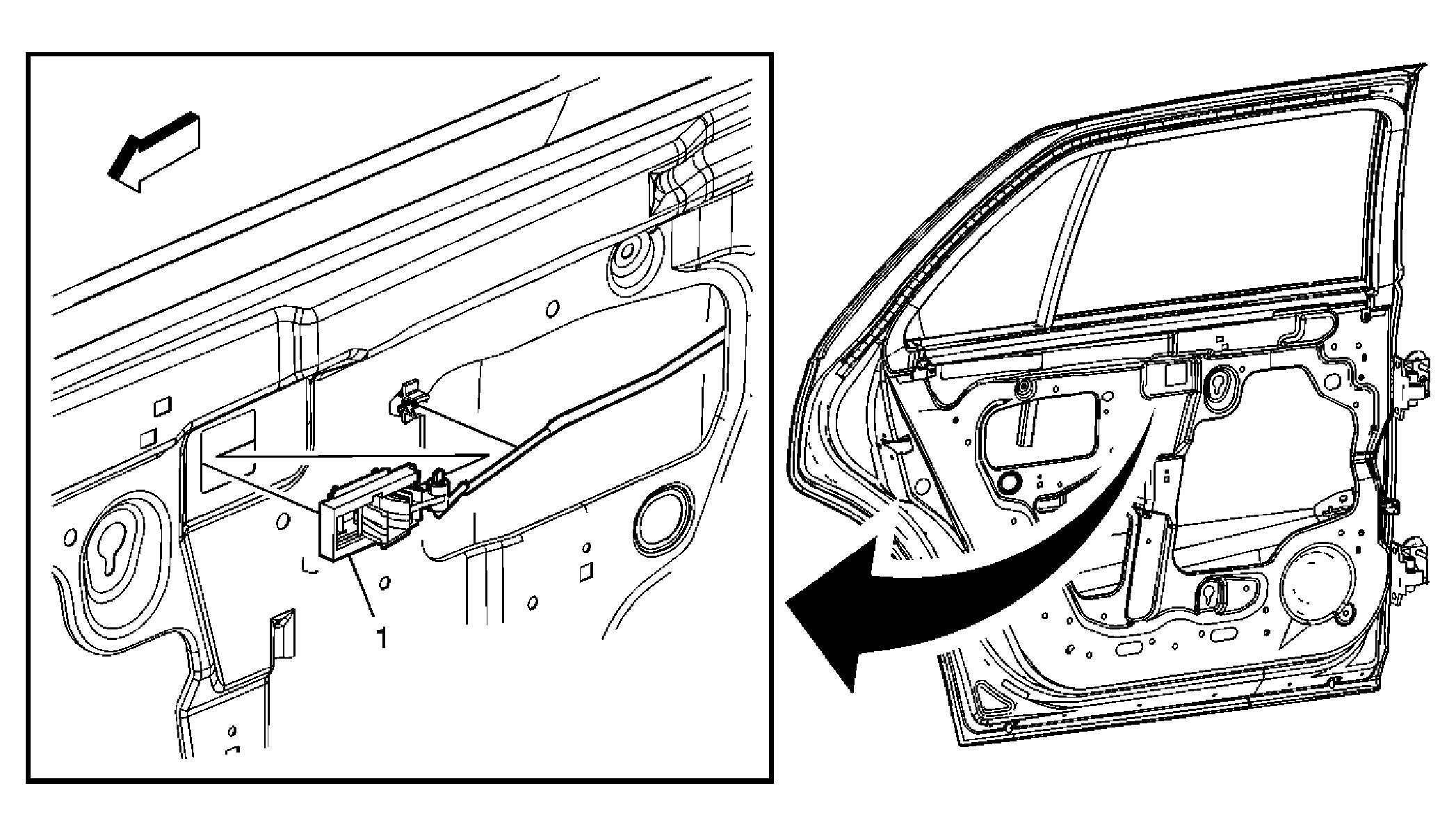

Fig 1: Door Handle Replacement - Rear Inside

Courtesy of GENERAL MOTORS CORP.

Door Handle Replacement - Rear Inside

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rear Side Door Inside Handle Tip: Disconnect the lock rod at the lock assembly.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .

Rear Side Door Inside Handle
Tip: Disconnect the lock rod at the lock assembly.
