Rear Door Lock Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

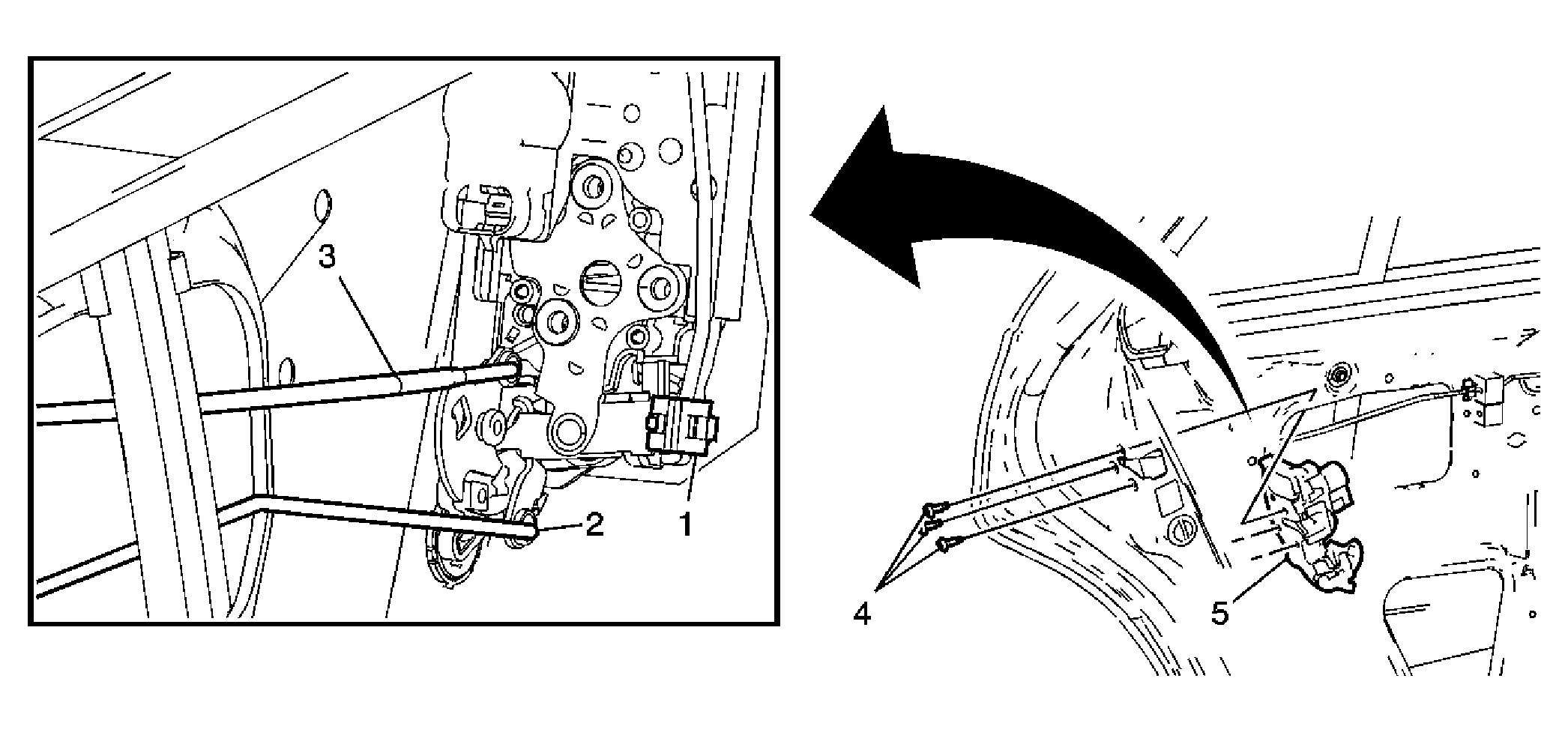

Fig 1: Lock Replacement - Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rod, Outside Door Handle Tip: Release the handle rod retainer with a flat-bladed tool.
2	Rod, Inside Lock Tip: Use a flat-bladed tool to release the inside lock rod from the lock.
3	Rod, Inside Handle Tip: Use a flat-bladed tool to release the inside handle rod from the lock.
4	Screw, Rear Side Door Lock (Qty: 3) Tighten: 10 N.m (89 lb in)
5	Lock Assembly, Rear Side Door Tip: Disconnect the electrical from the door lock.
