Front Side Door Lock Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

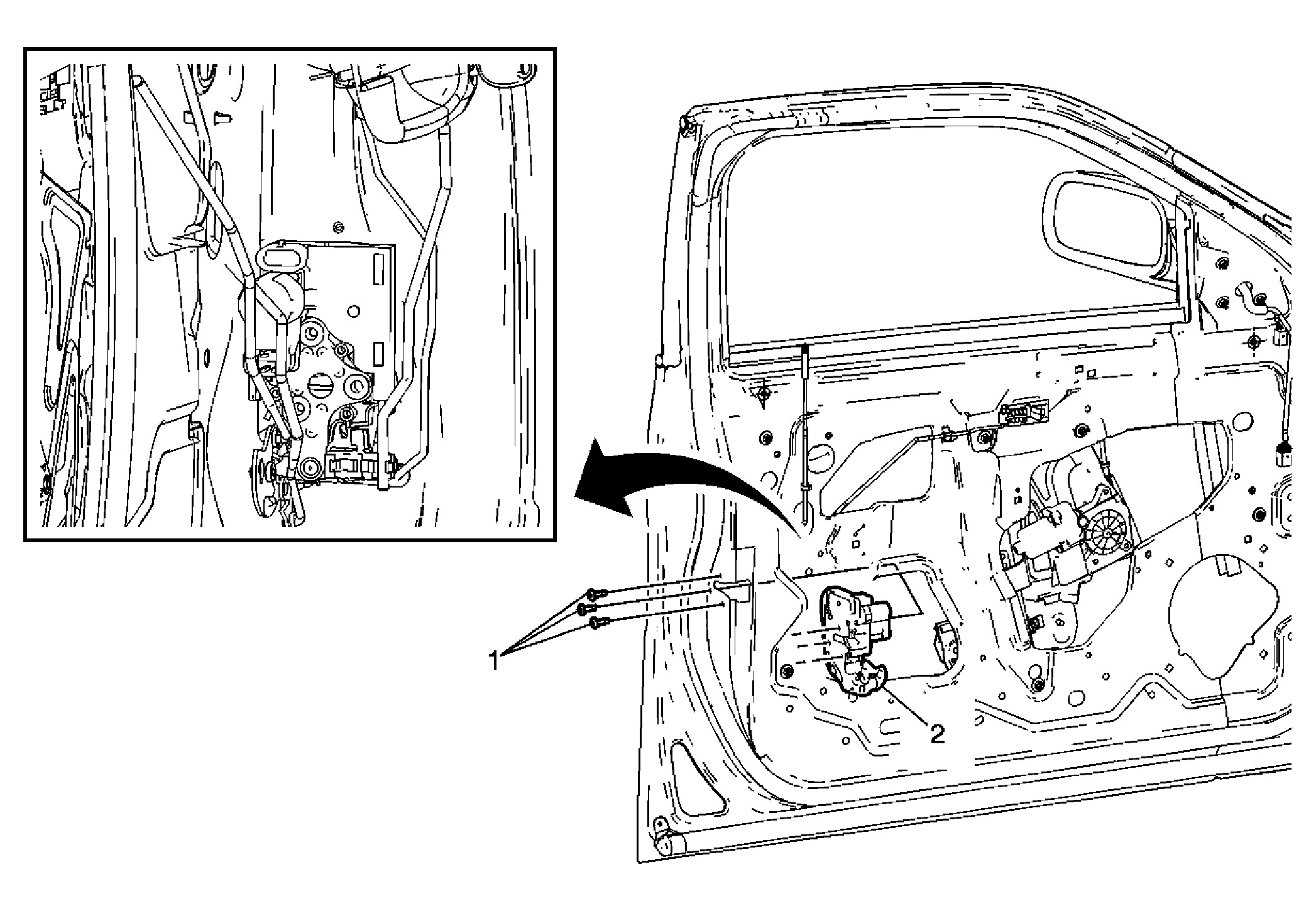

Fig 1: Lock Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Screw, Front Side Door Lock (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Lock Assembly, Front Side Door Tip: Disconnect the door lock electrical connector. Remove the handle and lock rods from the lock.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .

Screw, Front Side Door Lock (Qty: 3)

Tighten: 10 N.m (89 lb in)

Lock Assembly, Front Side Door
Tip:

Disconnect the door lock electrical connector.
Remove the handle and lock rods from the lock.
