Front Side Door Inside Handle Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

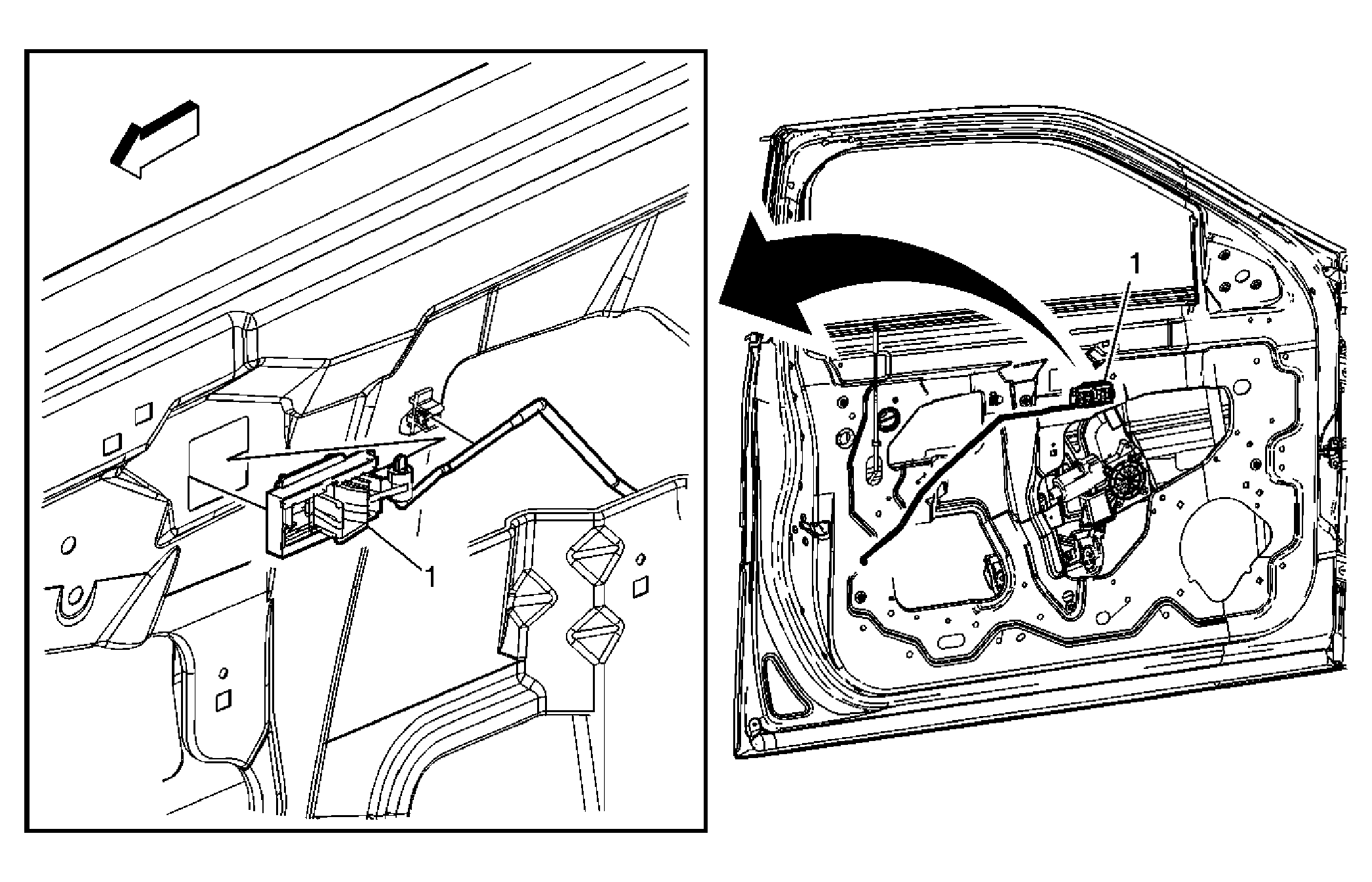

Fig 1: Door Handle Replacement - Front Inside
GM1640495Courtesy of GENERAL MOTORS CORP.
Door Handle Replacement - Front Inside

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
1 Front Side Door Inside Handle
Tip:  Disconnect the lock rod at the lock assembly.
