Rear Energy Absorber Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

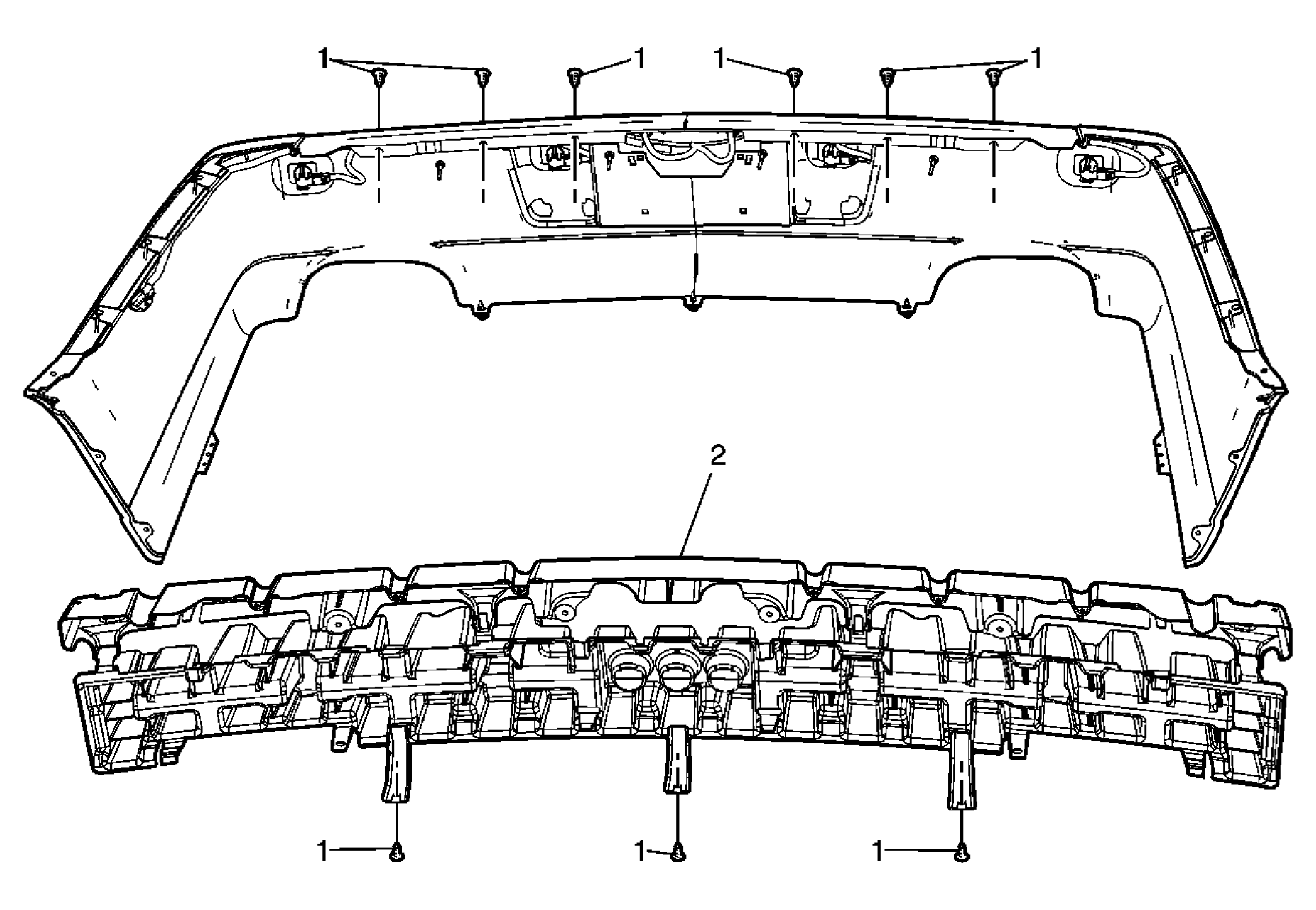

Fig 1: Rear Energy Absorber
GM1704938Courtesy of GENERAL MOTORS CORP.
Rear Energy Absorber Replacement

Callout Component Name
Preliminary Procedure:
  1. Remove the rear bumper fascia molding. Refer to Rear Bumper Fascia Molding Replacement
  2. Remove the rear fascia. Refer to Rear Bumper Fascia Replacement .
1 Rear Fascia Absorber Retainers (Qty: 9)
2 Rear Fascia Absorber
