Rear Bumper Fascia Molding Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

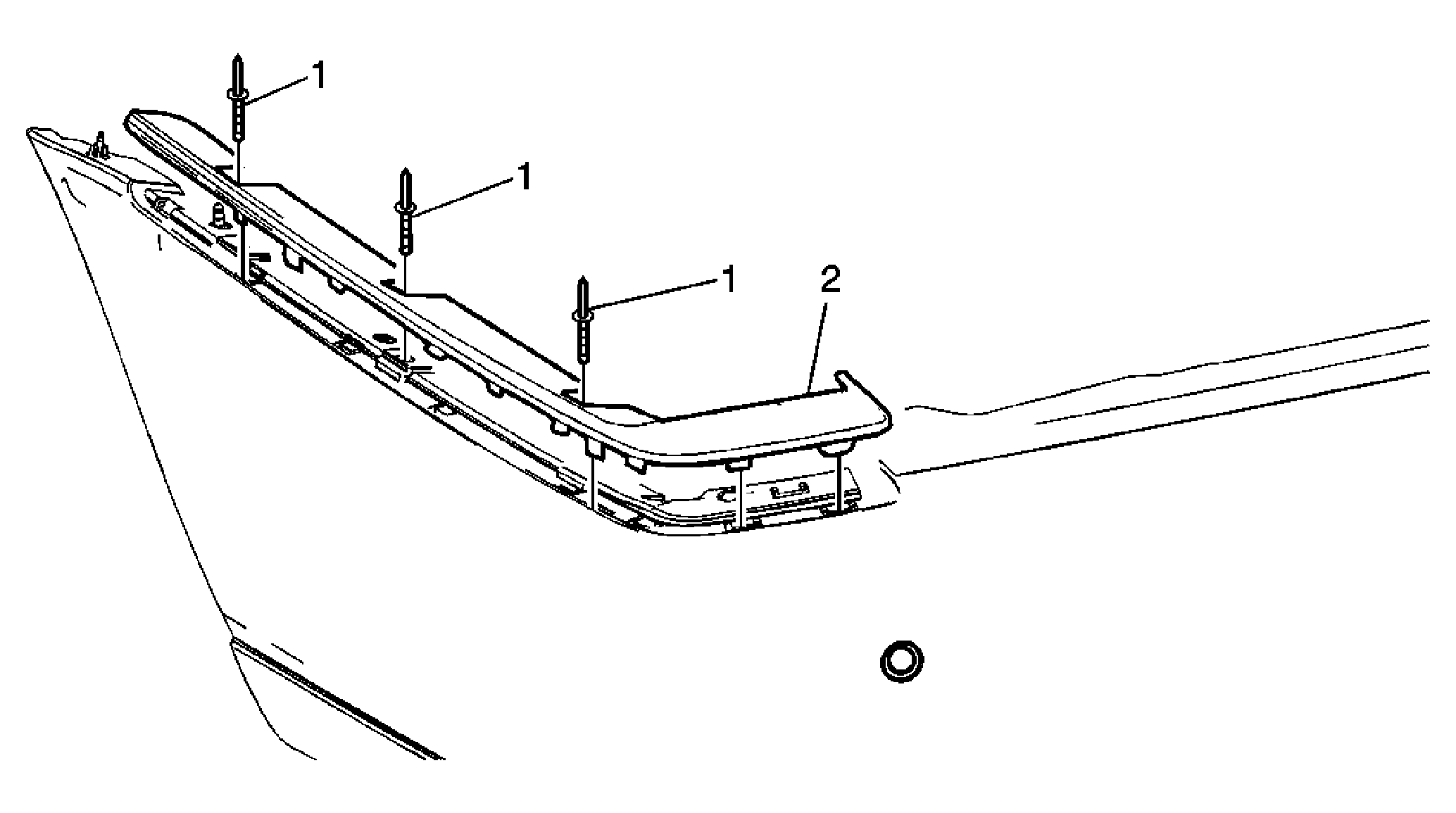

Fig 1: Molding Replacement - Rear Bumper

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the rear fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Fascia Molding Rivet (Qty: 3) CAUTION: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.
2	Rear Fascia Molding
