Front Bumper Fascia Molding Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

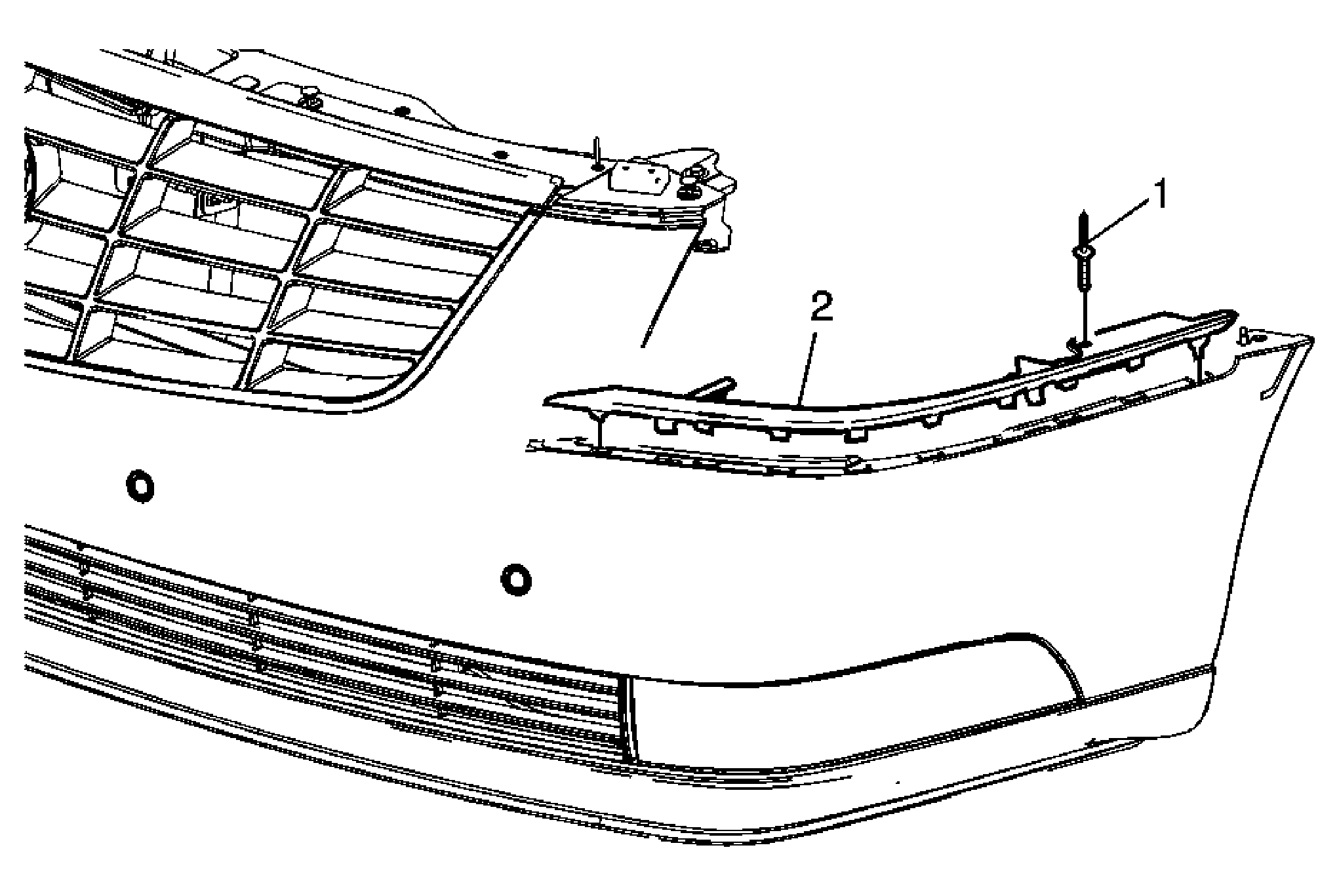

Fig 1: Molding Replacement - Front Bumper Fascia
GM1609108Courtesy of GENERAL MOTORS CORP.
Front Bumper Fascia Molding Replacement

Callout Component Name
Preliminary Procedure:
Remove front fascia. Refer to Front Bumper Fascia Replacement .
1 Rivet, Front Fascia Molding
CAUTION: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.
2 Tip  Disengage integral retainers.
