Rear Side Door Hinge Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

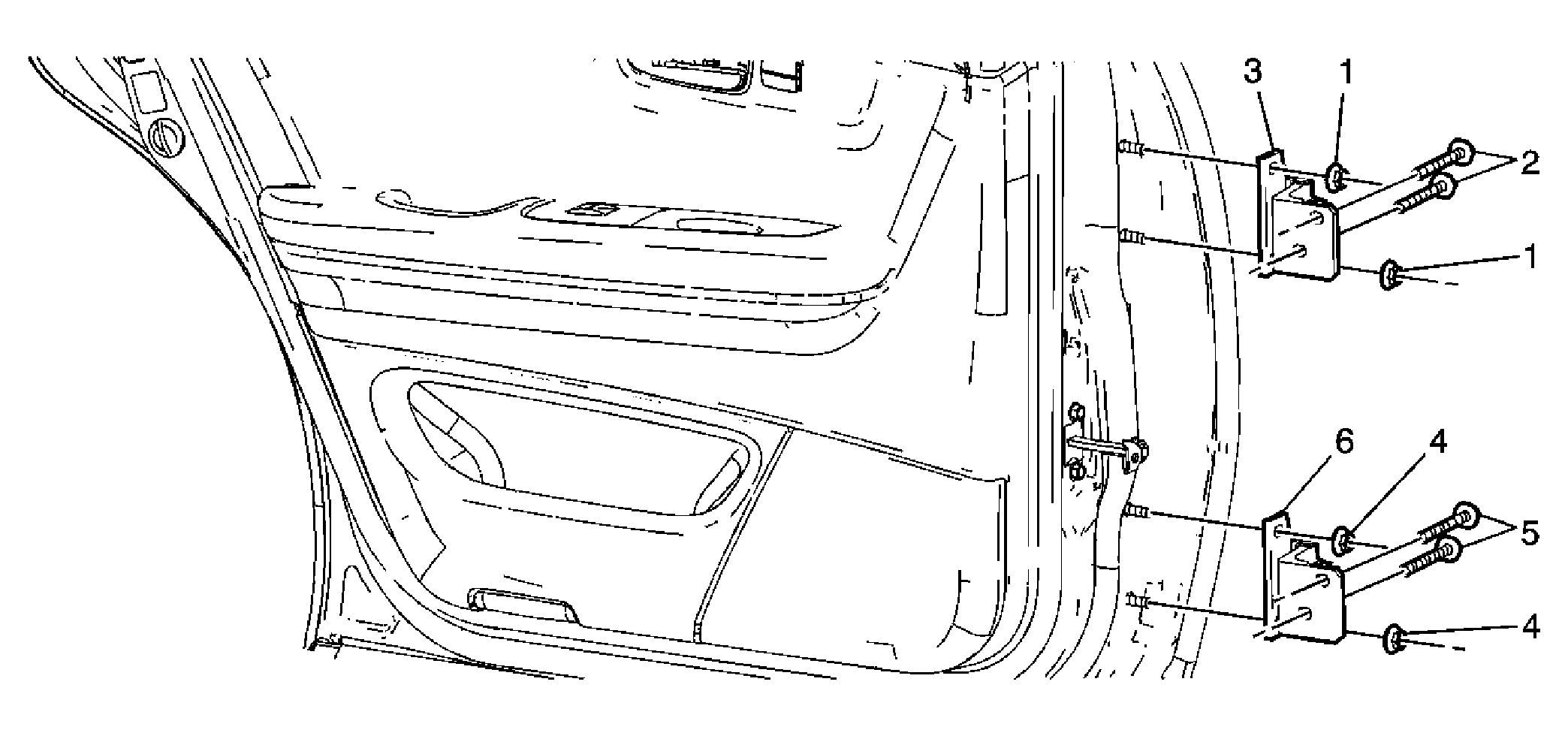

Fig 1: Hinge Replacement - Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Nut, Rear Side Door Upper Hinge to Door (Qty: 2) Tip: Support the door before removing the hinge nuts. Replace one door hinge at a time. Tighten: 26 N.m (19 lb ft)
2	Bolt, Rear Side Door Upper Hinge to Body (Qty: 2) Tighten: 34 N.m (25 lb ft)
3	Hinge, Rear Side Door Upper
4	Nut, Rear Side Door Lower Hinge to Door (Qty: 2) Tighten: 26 N.m (19 lb ft)
5	Bolt, Rear Side Door Lower Hinge to Body (Qty: 2) Tighten: 34 N.m (25 lb ft)
6	Hinge, Rear Side Door Lower
