Rear Door Opening Weatherstrip Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

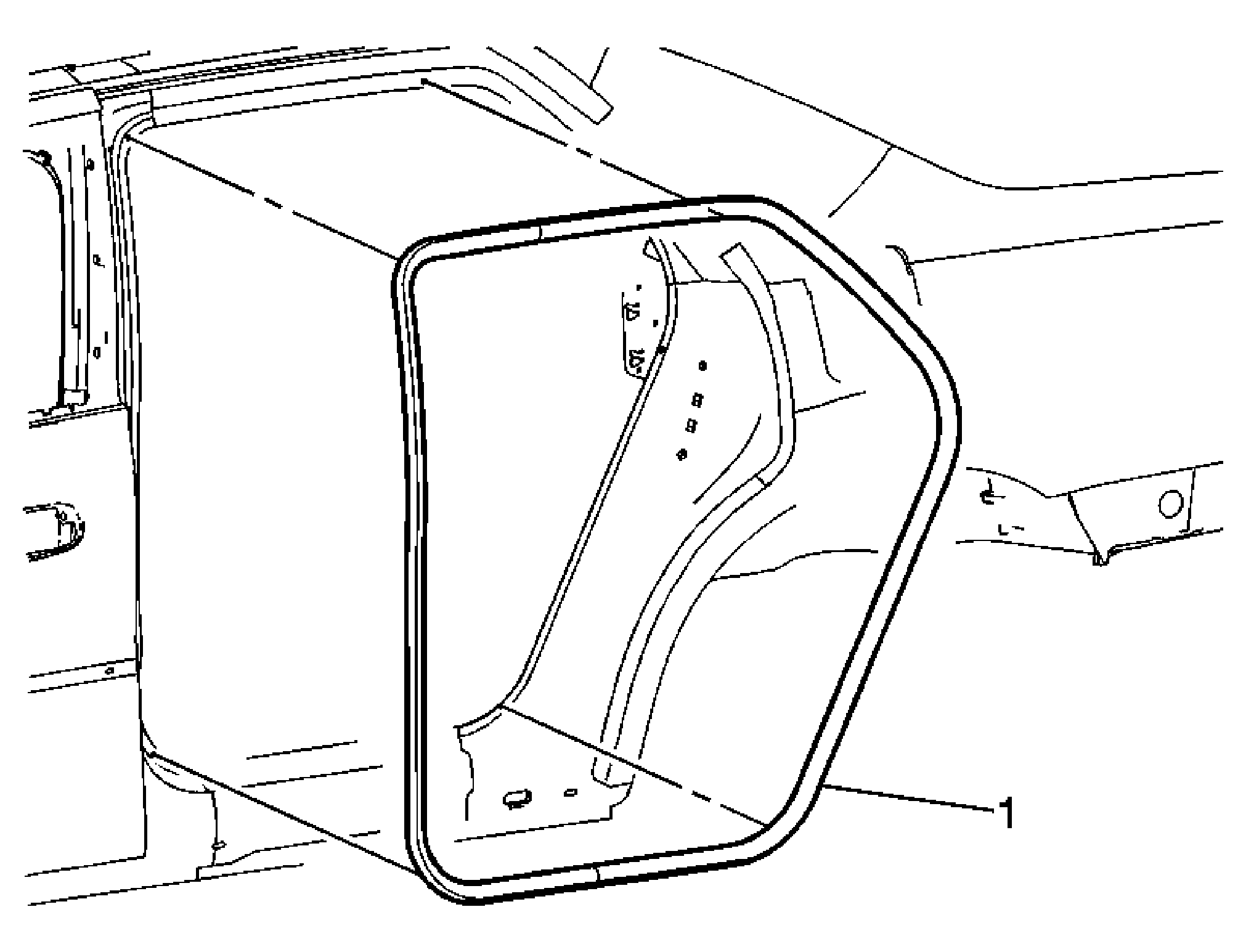

Fig 1: Weatherstrip Replacement - Rear Door Opening
GM1583284Courtesy of GENERAL MOTORS CORP.
Rear Door Opening Weatherstrip Replacement

Callout Component Name
Fastener Tightening Specification:  Refer to Fastener Tightening Specifications .
1 Weatherstrip, Rear Door Opening
Tip:  Pull the weatherstrip from the door opening flange.
