Front and Rear Side Door Upper Auxiliary Weatherstrip Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

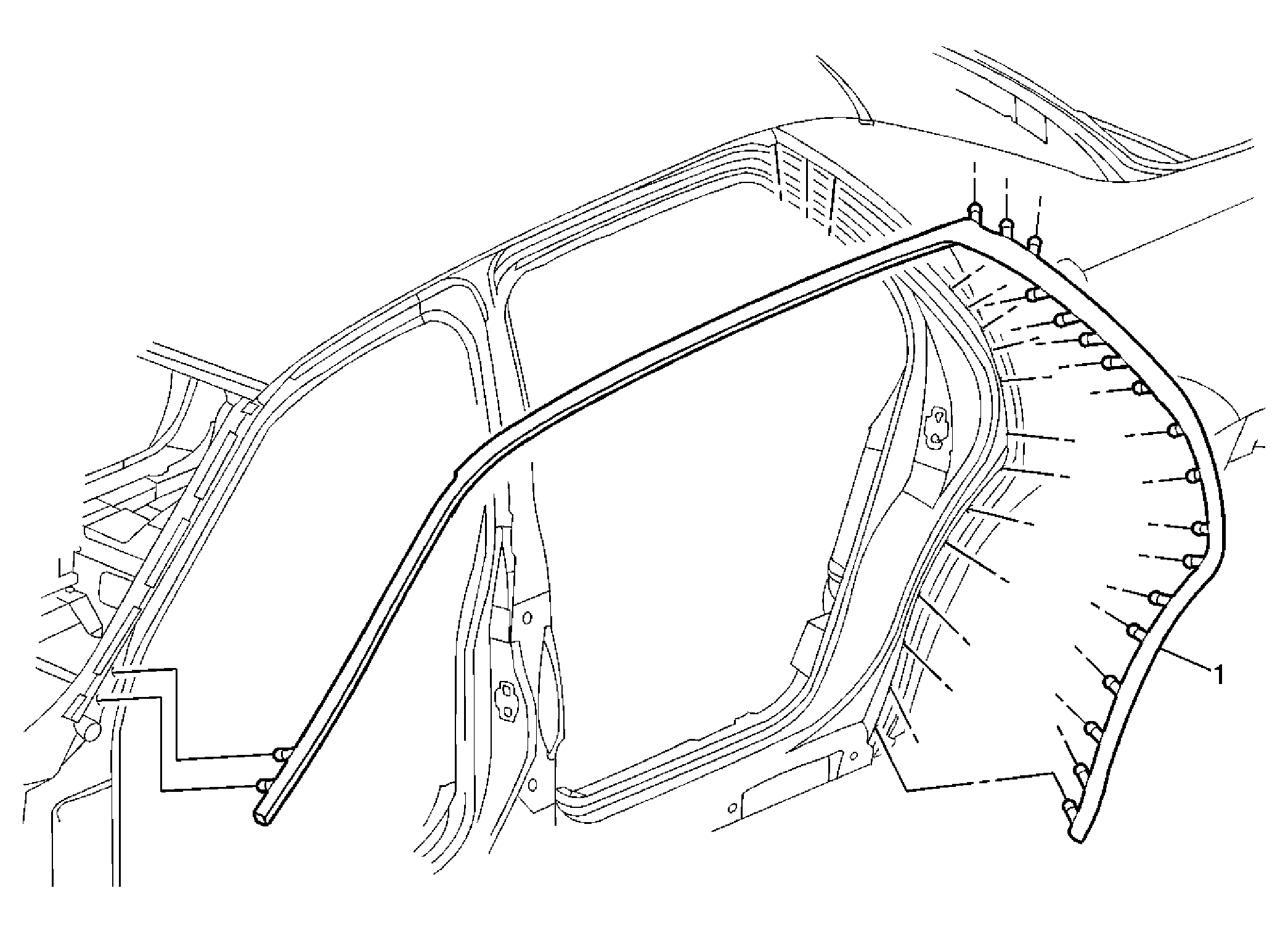

Fig 1: Weatherstrip Replacement - Front and Rear Side Door - Upper Auxiliary

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Weatherstrip, Front and Rear Door Upper Auxiliary Tip: Pull the weatherstrip away from the flange to remove. Use a plastic flat-blade to release the push-in retainers, if necessary.
