Rear Side Door Window Switch Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

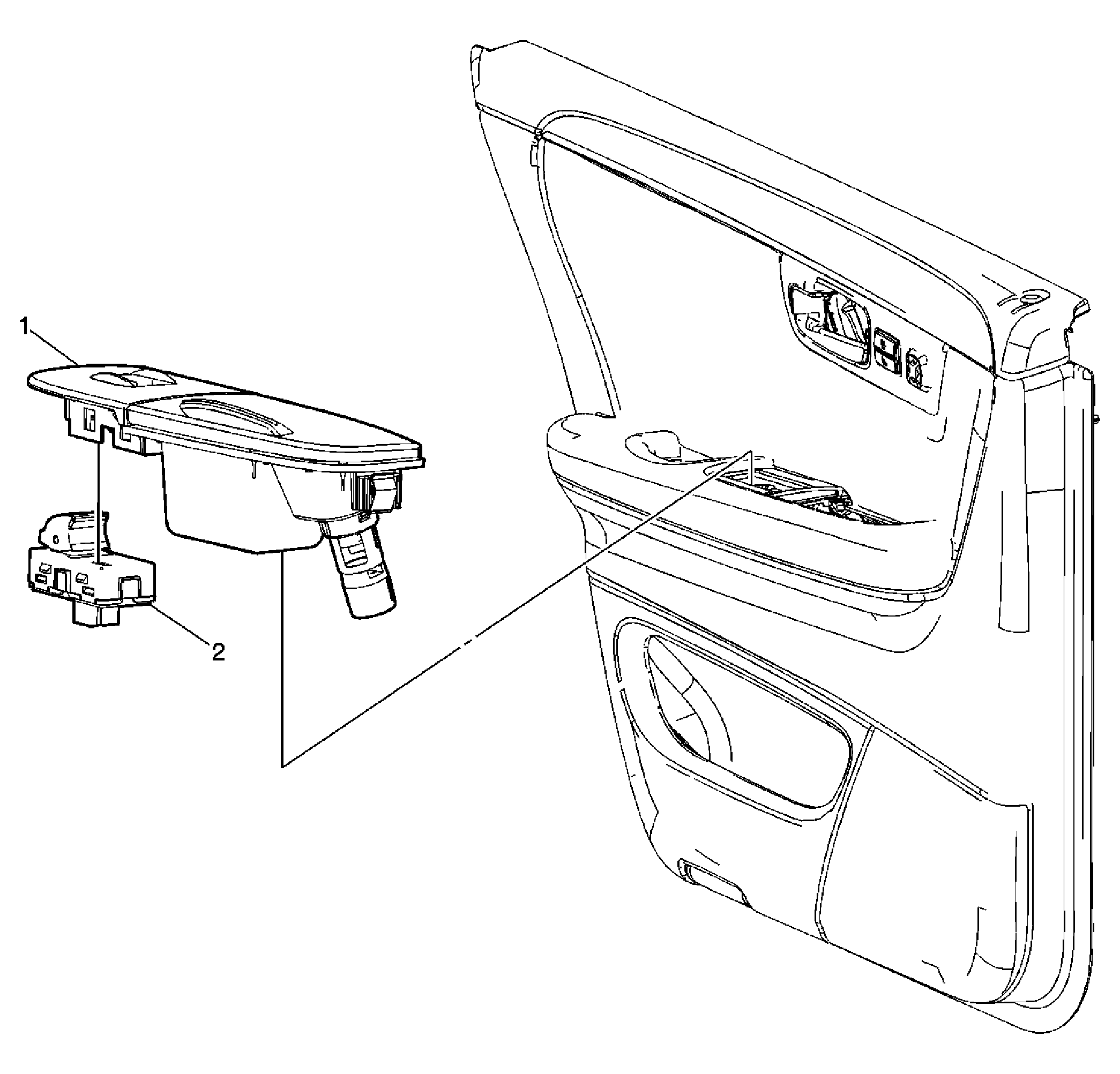

Fig 1: Rear Door Power Window Switch
GM1588530Courtesy of GENERAL MOTORS CORP.
Rear Side Door Window Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Plate, Side Door Armrest Switch Mount
Tip:  Disconnect the electrical connectors.
2 Switch Assembly, Rear Side Door Window
