Rear Side Door Window Front Channel Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

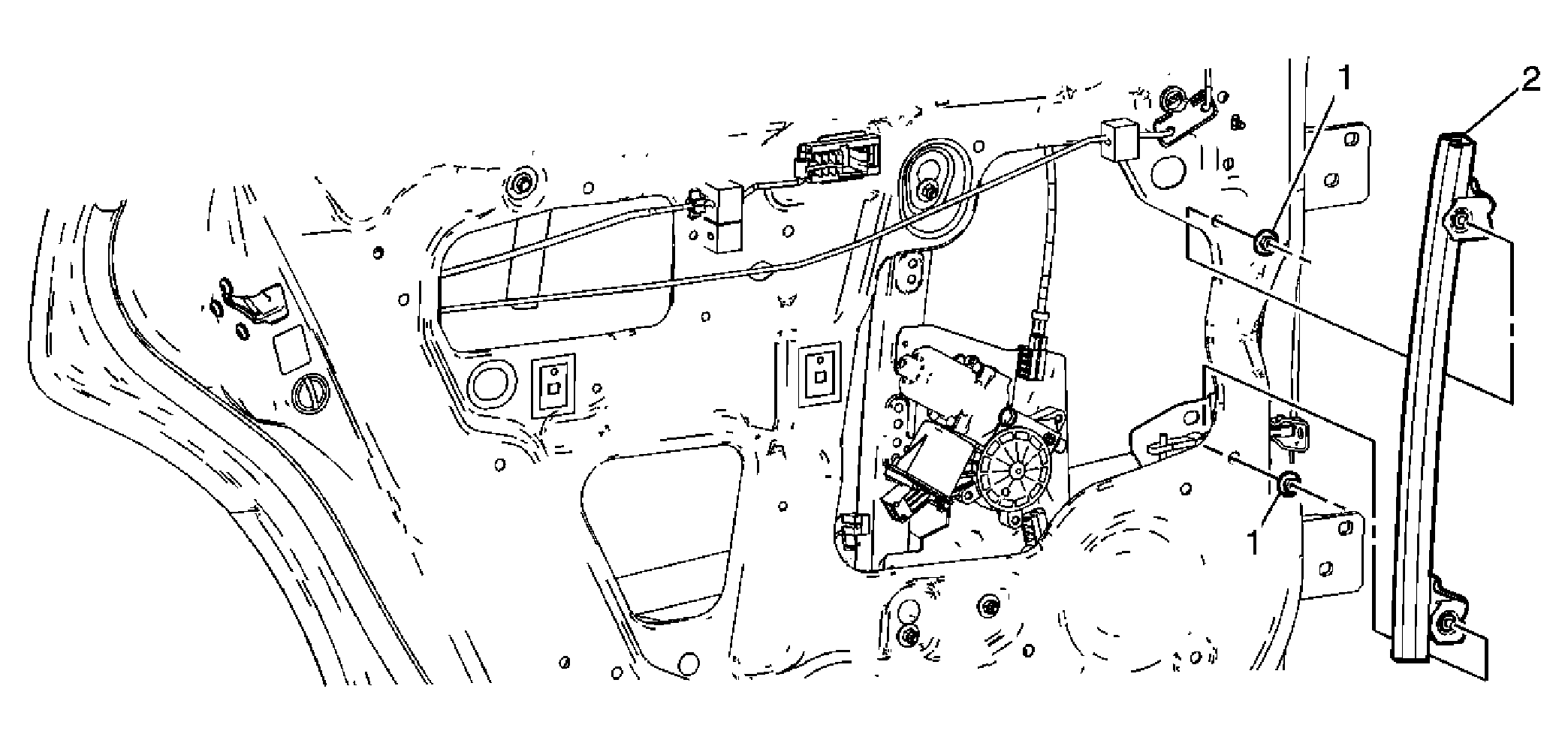

Fig 1: Window Channel Replacement - Rear Door Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Place the window in the full up position. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Nut, Rear Door Lower Window Channel (Qty: 2) Tighten: 9 N.m (80 lb in)
2	Channel, Rear Door Window Lower

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Place the window in the full up position.
Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .

Nut, Rear Door Lower Window Channel (Qty: 2)

Tighten: 9 N.m (80 lb in)

Channel, Rear Door Window Lower
