Front Side Door Window Rear Channel Retainer Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

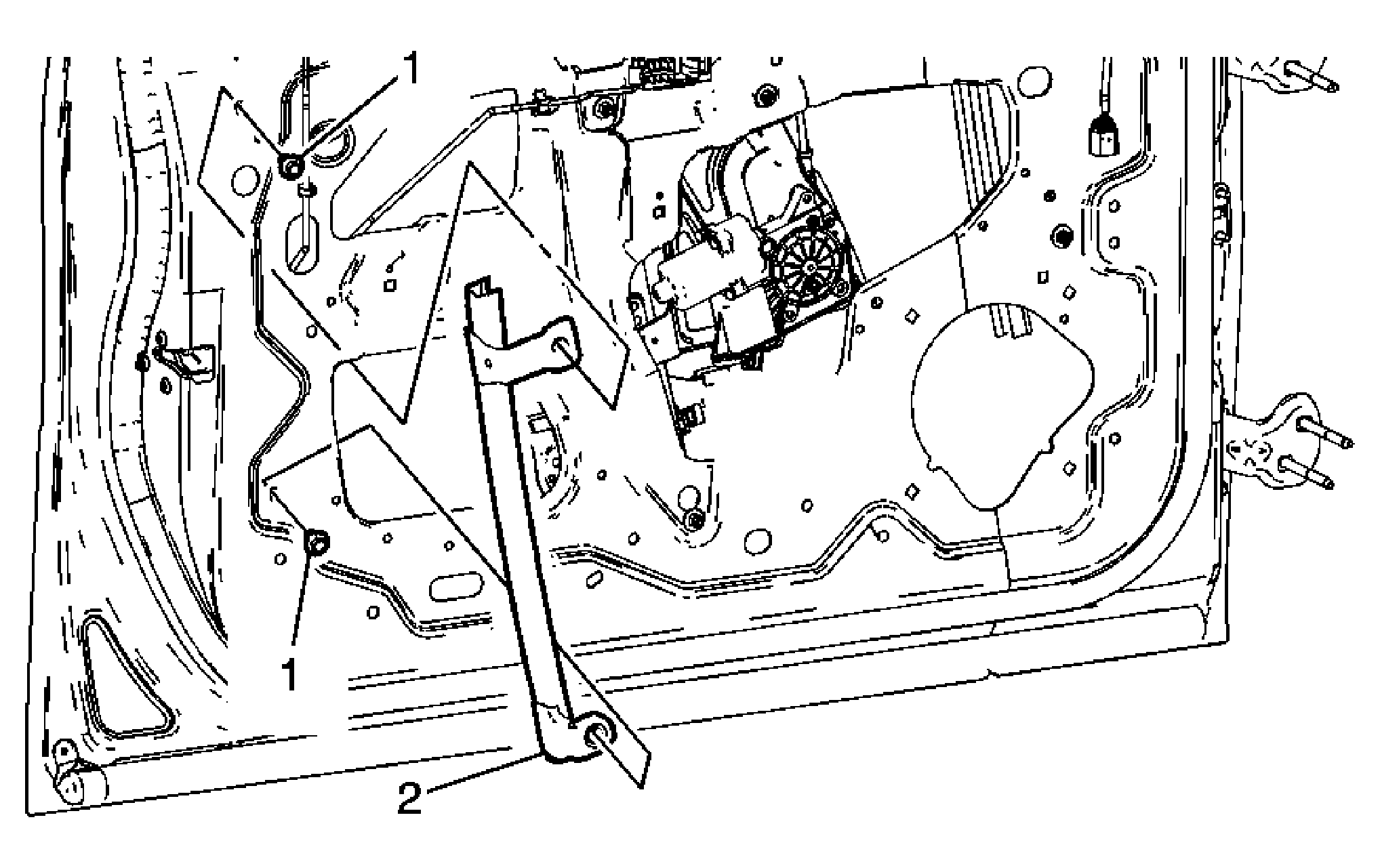

Fig 1: Front Side Door Window Rear Channel Retainer Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Position the window fully up in the door. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Nut, Front Side Door Window Channel Retainer Tighten: 9 N.m (80 lb in)
2	Retainer, Front Side Door Window Rear Channel

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Position the window fully up in the door.
Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .

Nut, Front Side Door Window Channel Retainer

Tighten: 9 N.m (80 lb in)

Retainer, Front Side Door Window Rear Channel
