Front Side Door Window Channel Retainer Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

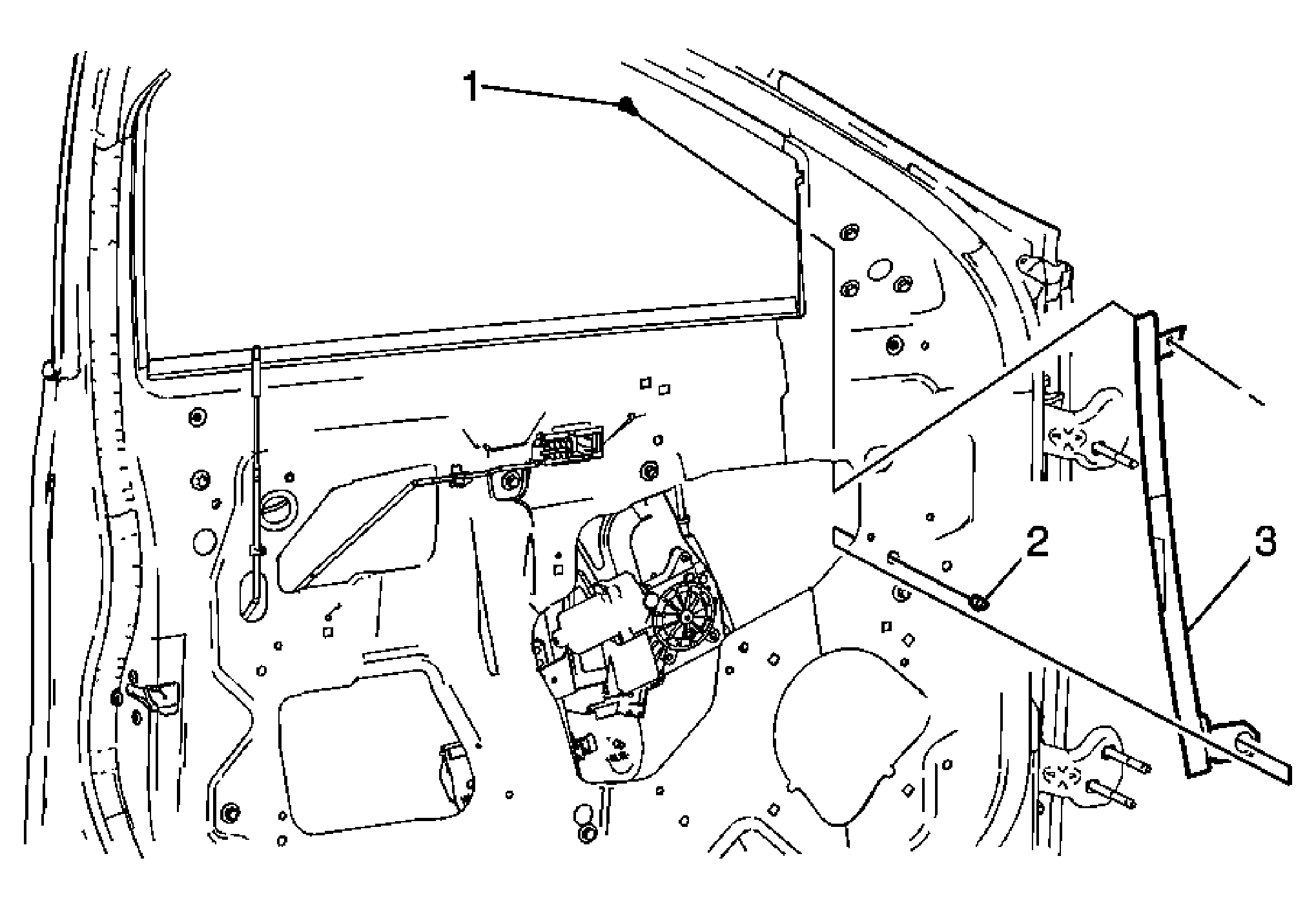

Fig 1: Front Side Door Window Channel Retainer Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Position the window fully up in the door. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Pull the front lower window channel weatherstrip from the retainer.
1	Screw, Front Side Door Window Channel Retainer Tighten: 1.3 N.m (12 lb in)
2	Nut, Front Side Door Window Channel Retainer Tighten: 9 N.m (80 lb in)
3	Retainer, Front Side Door Window Channel
