Air Temperature Actuator Replacement - Right

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

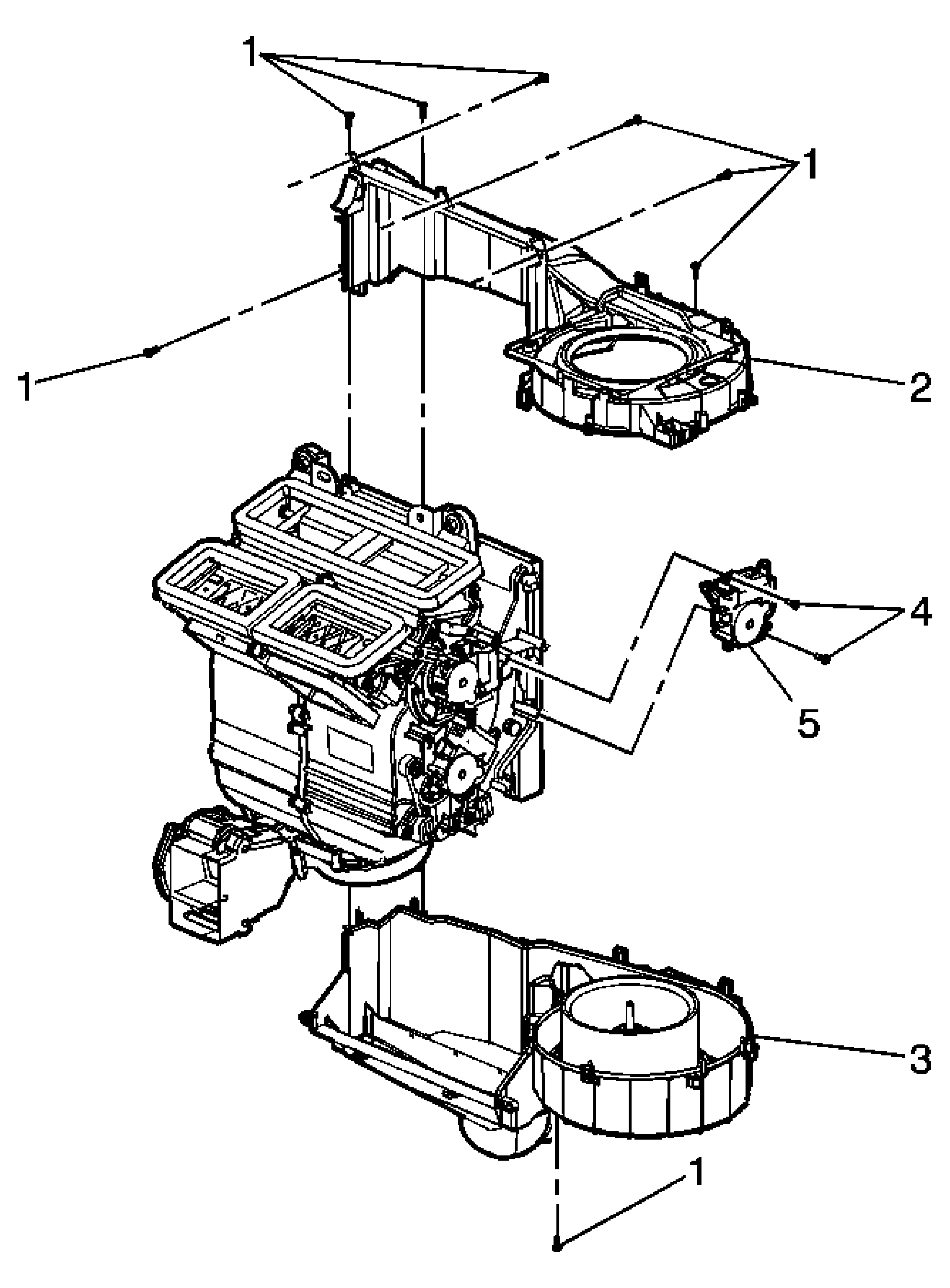

Fig 1: Identifying Air Temperature Actuator - Right

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement . Remove the right hand floor air outlet duct. Refer to Air Outlet Duct Replacement - Floor, RH . Remove the left hand floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side . Disconnect the HVAC module electrical connectors.
1	A/C Evaporator Case Upper Screw (Qty: 7) Tighten: 1.0 N.m (9 lb in)
2	A/C Evaporator Case - Upper
3	A/C Evaporator Case - Lower
4	Air Temperature Actuator Screw (Qty: 2) Tighten: 1.0 N.m (9 lb in)
5	Air Temperature Actuator, Right
