Floor Air Outlet Duct Replacement - Left Side

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

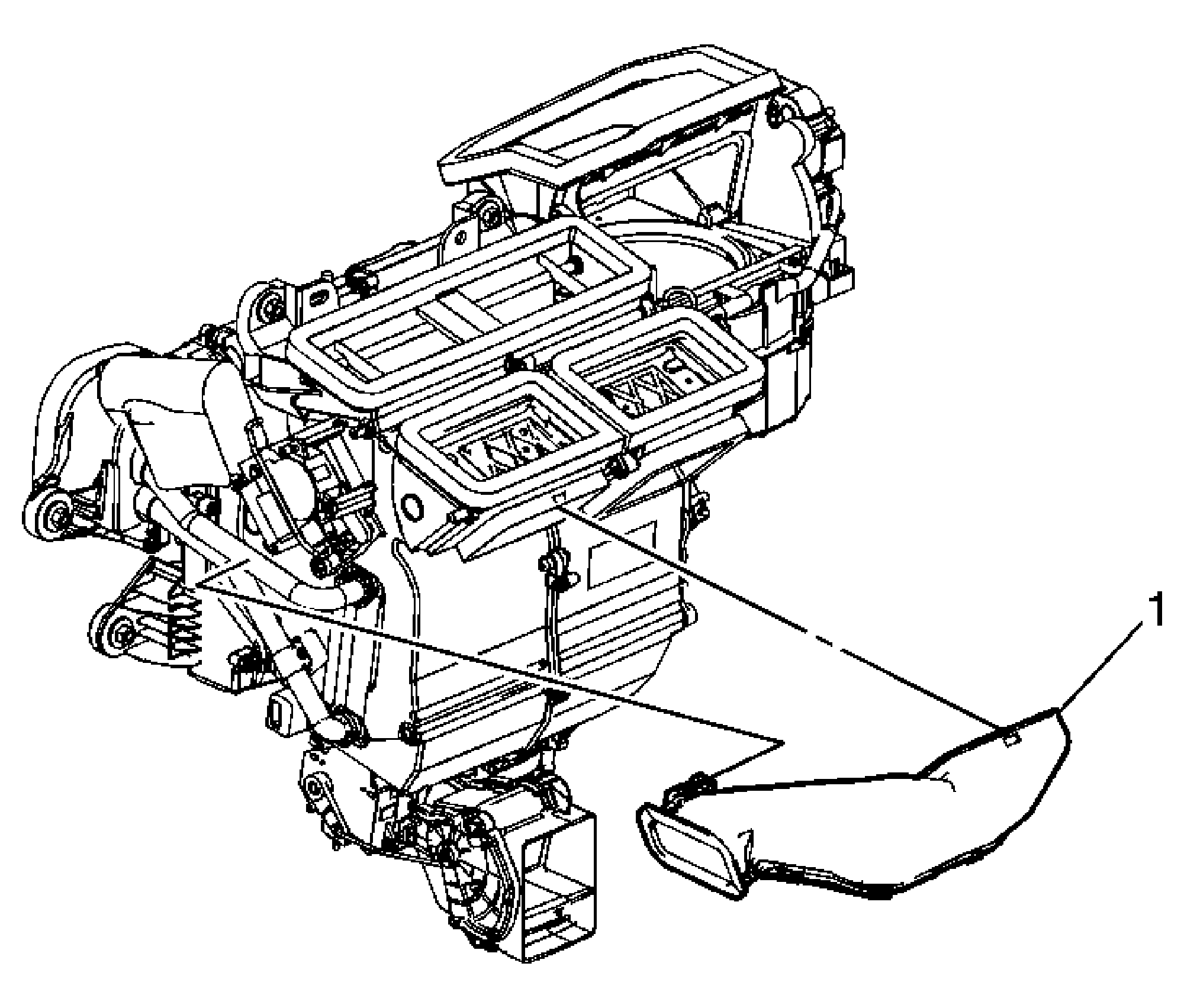

Fig 1: Removing/Installing Floor Air Outlet Duct - Left Side
GM1661299Courtesy of GENERAL MOTORS CORP.
Floor Air Outlet Duct Replacement - Left Side

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the instrument panel (I/P) lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
1 Floor Air Outlet Duct, LH
