Air Temperature Actuator Replacement - Left

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

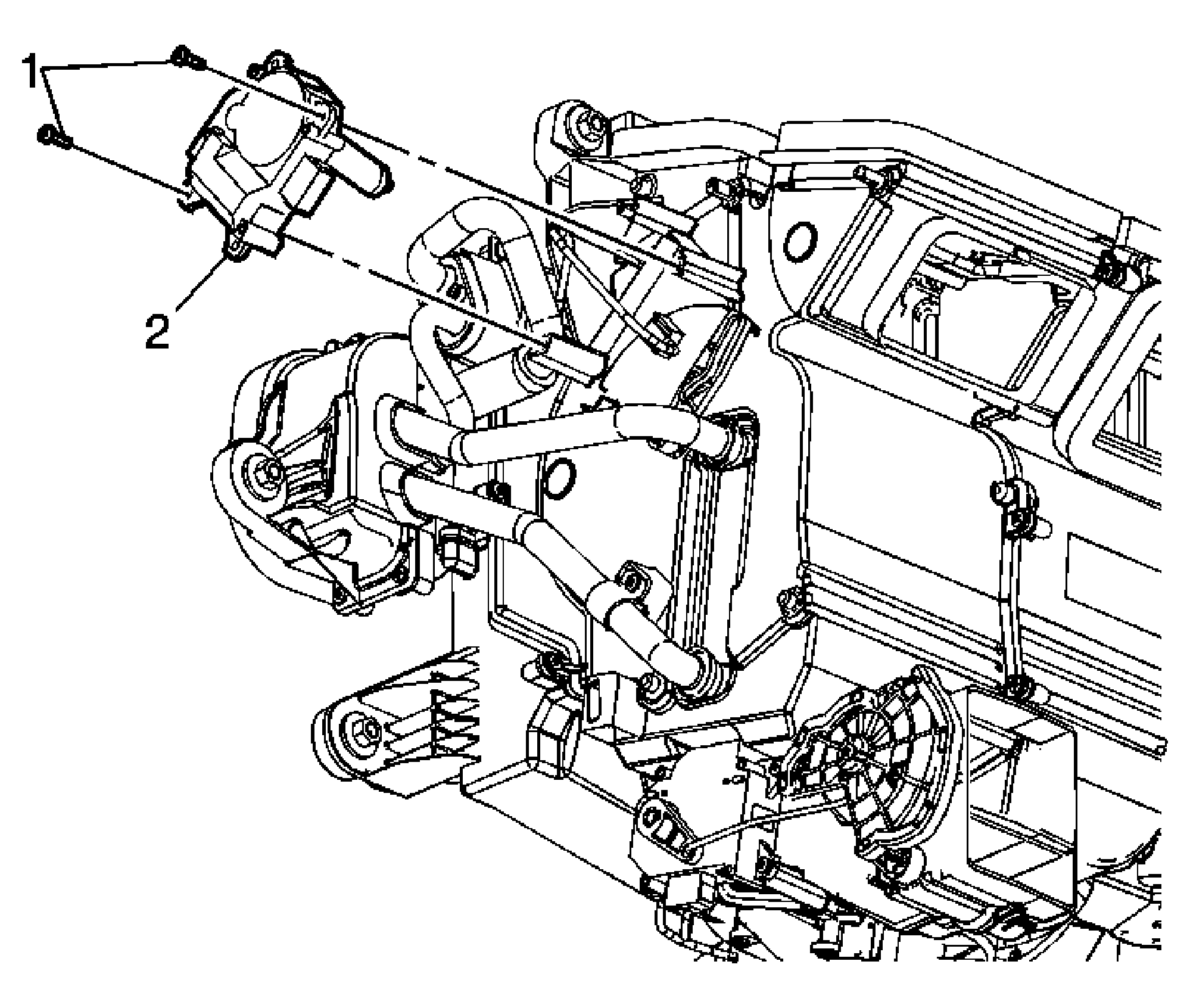

Fig 1: Identifying Air Temperature Actuator - Left
GM1662117Courtesy of GENERAL MOTORS CORP.
Air Temperature Actuator Replacement - Left

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
  2. Remove the left hand floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side .
  3. Disconnect the left hand air temperature actuator electrical connector.
1 Mode Actuator Screw (Qty: 2)

Tighten:  1 N.m (9 lb in)
2 Mode Actuator
