Steering Wheel Position Sensor Replacement (Manual Steering Column with JL4)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

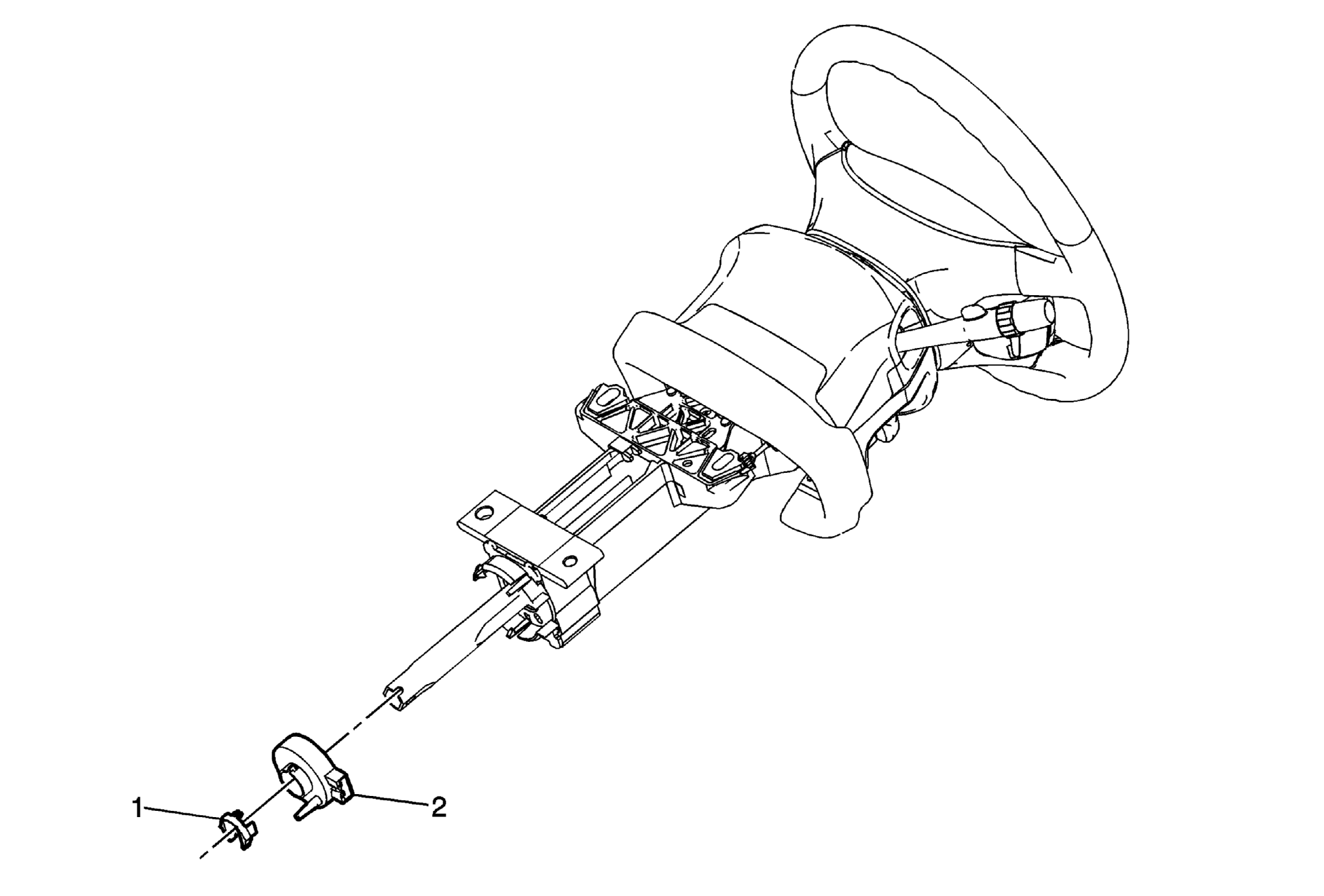

Fig 1: View of Steering Wheel Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the intermediate steering shaft. Refer to Intermediate Steering Shaft Replacement .
1	Steering Angle Sensor Adapter
2	Steering Wheel Position Sensor Procedure Disconnect any electrical connectors as needed. Tip If reusing, secure the old steering wheel position sensor before removing it for proper alignment upon reinstallation. Refer to Steering Wheel Position Sensor Centering .

Callout

Component Name

Preliminary Procedure

Remove the intermediate steering shaft. Refer to Intermediate Steering Shaft Replacement .

Steering Angle Sensor Adapter

Steering Wheel Position Sensor

Procedure

Disconnect any electrical connectors as needed.

Tip

If reusing, secure the old steering wheel position sensor before removing it for proper alignment upon reinstallation. Refer to Steering Wheel Position Sensor Centering .
