Intermediate Steering Shaft Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

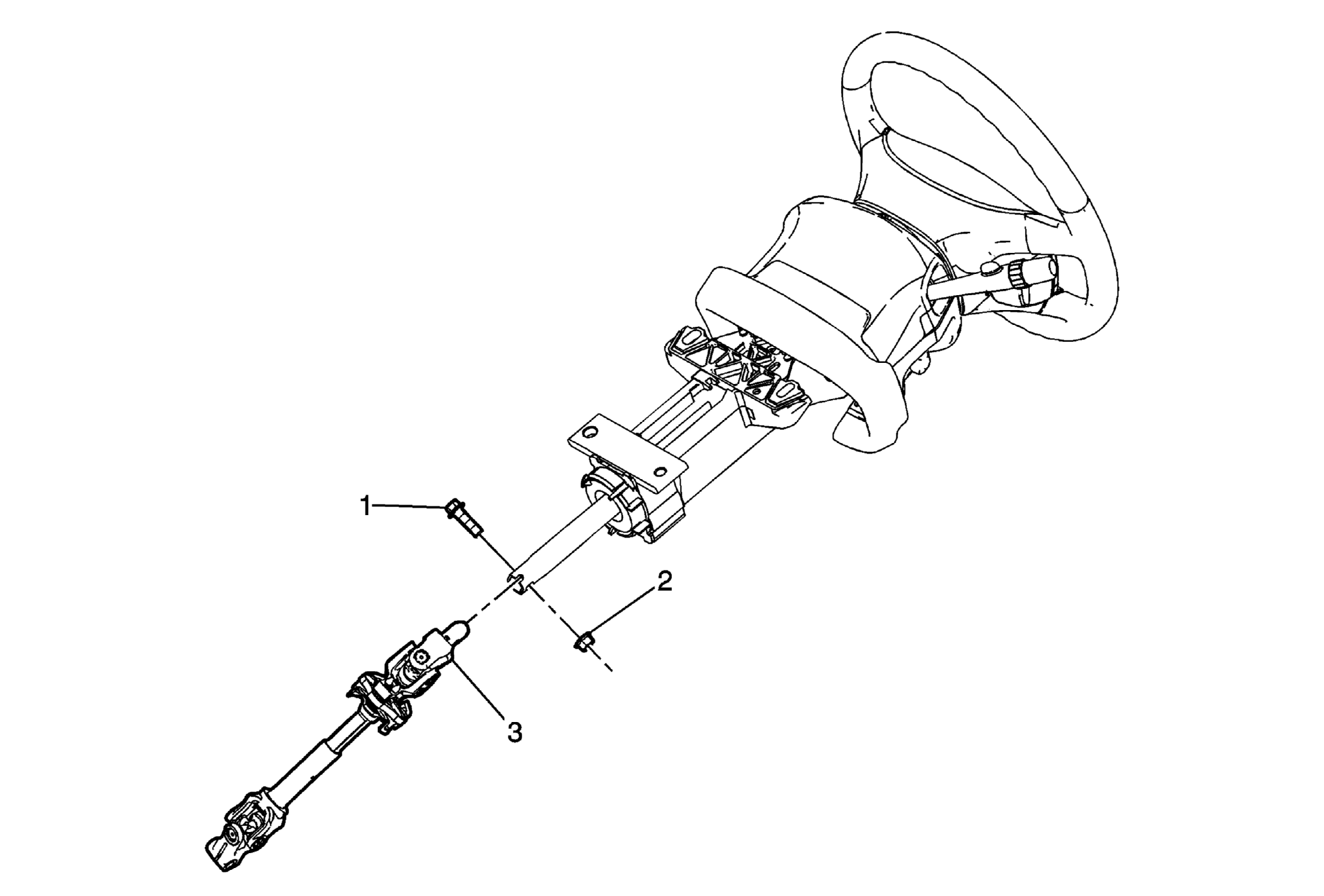

Fig 1: View of Intermediate Steering Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Secure the steering wheel utilizing a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components: The steering column The intermediate shaft The steering gear After disconnecting these components, do not move the front tires and wheels. Failure to follow these procedures may cause improper alignment of some components during installation and result in possible damage to the SIR coil. Preliminary Procedure Remove the steering column. Refer to Steering Column Replacement .
1	Intermediate Steering Shaft Bolt Procedure Remove the steering column boot seal in order to access the intermediate steering shaft bolt.
2	Intermediate Steering Shaft Nut NOTE: Refer to Fastener Notice . Tighten 47 N.m (35 lb ft)
3	Intermediate Steering Shaft Tip If necessary, scribe location marks between the intermediate steering shaft and the steering column and the intermediate steering shaft and the steering gear to mark their alignment before removing. If replacing the intermediate steering shaft, transfer any scribe marks from the old one to the new one.
