Air Temperature Door Replacement (CJ2)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

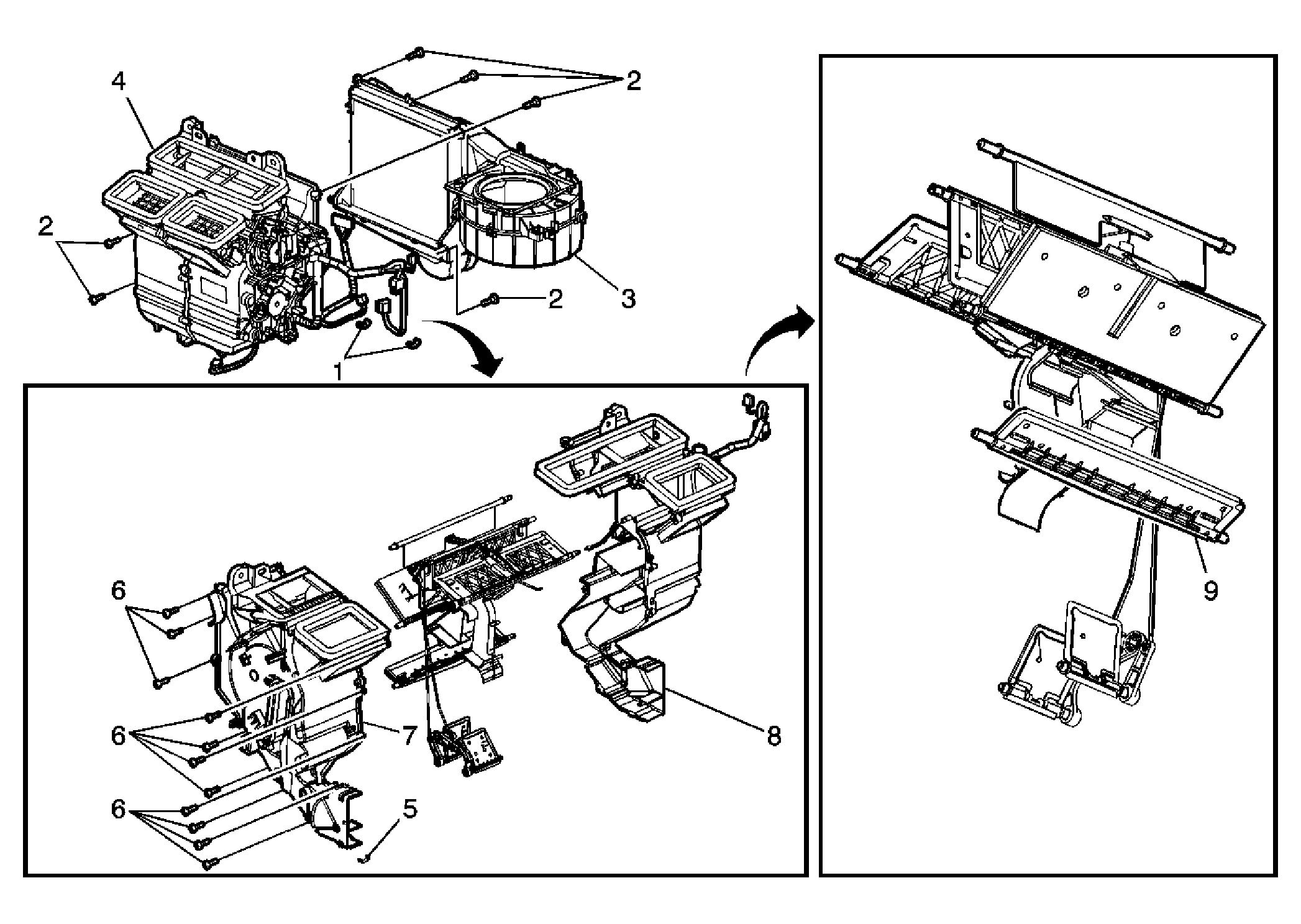

Fig 1: Removing/Installing Air Temperature Door (C67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement Remove the blower motor assembly from the HVAC module. Refer to Blower Motor Replacement Remove the left hand floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side Remove the heater core. Refer to Heater Core Replacement IMPORTANT: Leave the recirculation actuator attached to the air inlet housing assembly. Remove the air inlet housing assembly. Refer to Air Inlet Assembly Replacement Remove the thermal expansion valve from the evaporator core. Refer to Thermal Expansion Valve Replacement
1	Blower Case Clip (Qty: 2)
2	Air Distributor Case Screw (Qty: 6) NOTE: Refer to Fastener Notice Tighten: 1.0 N.m (9 lb in)
3	Heater and Air Conditioning Case Assembly
4	Air Distributor Case Assembly
5	Air Distributor Case Assembly Clip
6	Air Distributor Case Assembly Screw (Qty: 11) Tighten: 1.0 N.m (9 lb in)
7	Air Distributor Case - Left
8	Air Distributor Case - Right
9	Air Temperature Valve
