Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

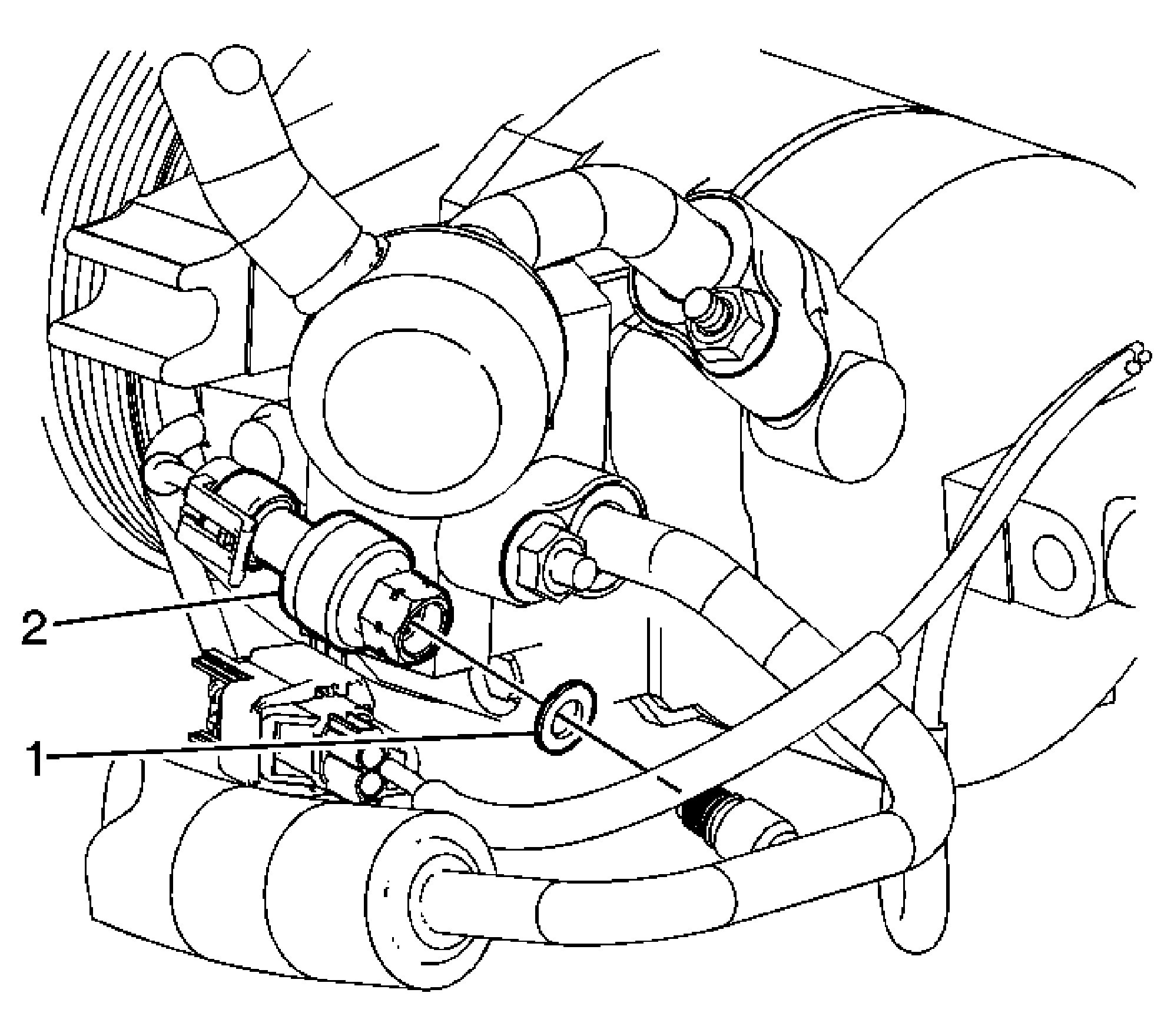

Fig 1: View Of Air Conditioning (A/C) Refrigerant Pressure Sensor (LD8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front air deflector. Refer to Front Air Deflector Replacement . Unclip the brake lines from engine frame to allow access. Disconnect the A/C pressure sensor electrical connector.
1	O-ring Tip: Remove and discard the O-ring. Refer to O-Ring Replacement .
2	A/C Refrigerant Pressure Sensor Tighten: 5 N.m (44 lb in)

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front air deflector. Refer to Front Air Deflector Replacement .
Unclip the brake lines from engine frame to allow access.
Disconnect the A/C pressure sensor electrical connector.

O-ring
Tip: Remove and discard the O-ring. Refer to O-Ring Replacement .

A/C Refrigerant Pressure Sensor

Tighten: 5 N.m (44 lb in)
