Installation Procedure

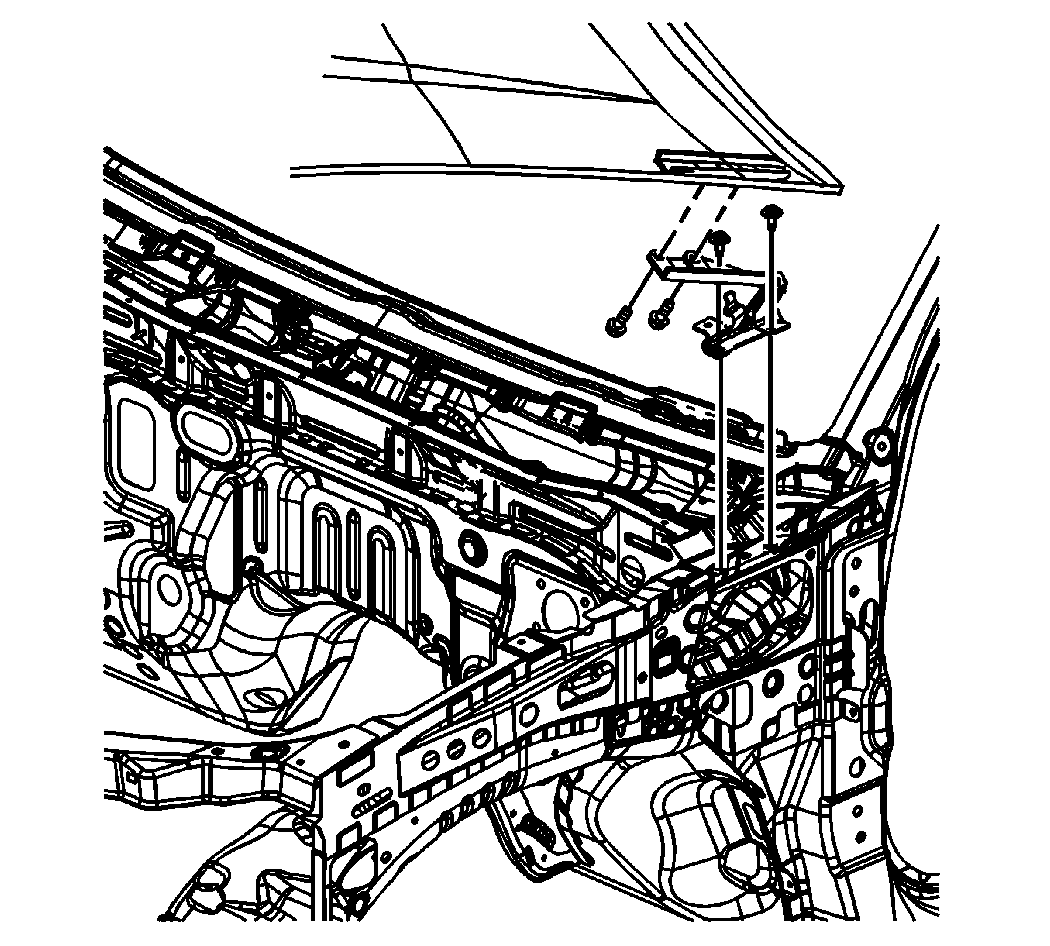

    Fig 1: View Of Hood Hinges
    GM1313590Courtesy of GENERAL MOTORS CORP.
  1. With the aid of an assistant, position the hood to the vehicle.
  2. Partially install the 4 bolts that retain the hood to the hinges.
    3. NOTE: Refer to Fastener Notice .
  3. With the aid of an assistant, position the hood to the hinges at the previously marked locations.

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

  4. Inspect the hood for proper adjustment. Refer to Hood Adjustment .
  5. Install the front hood seal. Refer to Hood Front Seal Replacement .
