Knee Bolster Replacement

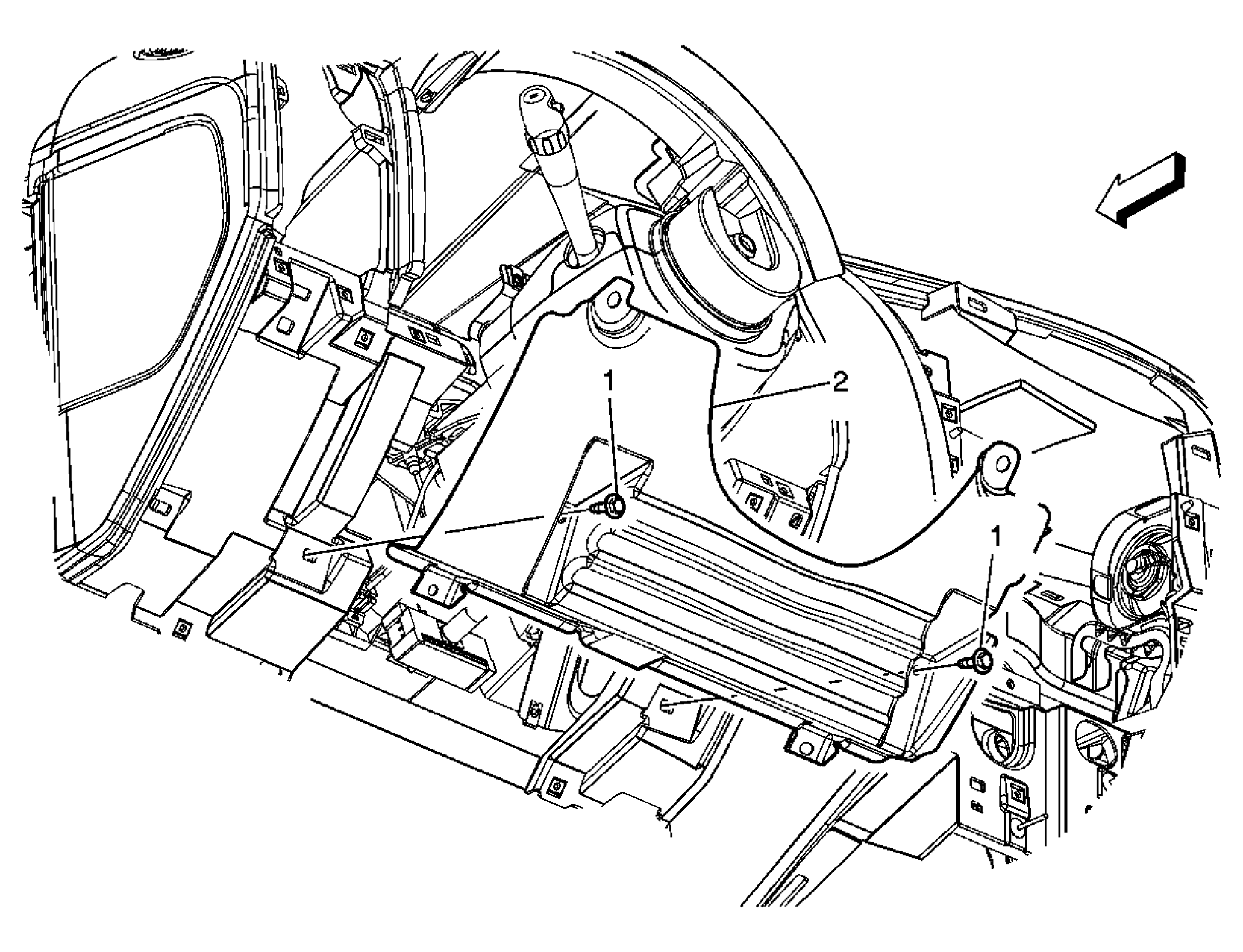

Fig 1: View Of Knee Bolster Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the left insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side . Remove the knee bolster trim panel. Refer to Driver Knee Bolster Panel Replacement .
1	Knee Bolster Bracket Bolts (Qty: 2) Tighten: 9 N.m (80 lb in)
2	Knee Bolster Bracket

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Knee Bolster Bracket Bolts (Qty: 2)

Tighten: 9 N.m (80 lb in)

Knee Bolster Bracket
